AO Smith®

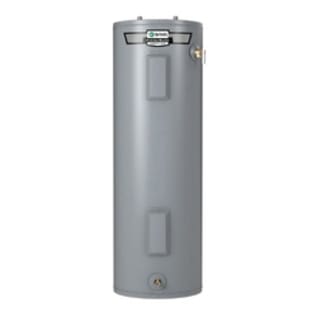

AO Smith® ProLine® 100274384 HNT-50 Electric Water Heater, 50 gal Tank, 9000 W Power Rating, 240 VAC, 1 ph Phase, Tall

1435436 MFG #: 100274384
$606.90 / ea
AO Smith® ProLine® 100274384 HNT-50 Electric Water Heater, 50 gal Tank, 9000 W Power Rating, 240 VAC, 1 ph Phase, Tall
  • ASME Yes/No: No
  • Dimensions: 20-1/2 in Dia x 60-1/2 in H
  • Energy Efficiency: 0.92
  • Heating Element: (2) Incoloy®
  • Phase: 1
  • Power Rating: 9000
  • Pressure Rating: 150
  • Recovery Rate: 21 gph at 90 deg F Rise
  • Series: HNT-50
  • Tall or Short: Tall
  • Tank Capacity: 50
  • Voltage Rating: 240
  • Water Connection: 3/4 in MNPT

AO Smith® ProLine® Electric Water Heater, Series: HNT-50, 50 gal Tank, 240 VAC, 9000 W Power, 1 ph ph, 3/4 in MNPT Water Connection, (2) Incoloy® Heating Element, 0.92 Energy Efficiency, 21 gph at 90 deg F Rise Recovery Rate, 150 psi Pressure, Tall Tall or Short, ASME: No, 20-1/2 in Dia x 60-1/2 in H Dimensions

The ProLine® Standard electric water heater is the reliable choice when you are looking to maximize your hot water output and is designed with environmentally-friendly insulation to reduce standby heat loss. With a 50 gal (nominal) tank delivering 4500 W, the HNT-50 delivers a first hour rating of 59 gal at a Uniform Energy Factor of 0.92. The Coregard™ sacrificial anode helps protect the tank from the corrosive effects of water and is accompanied by a 8-year limited tank warranty.

QTY
Add to List
  • Features
  • Helps reduce lime and sediment buildup and maximizes hot water output
  • Made from long-lasting PEX cross-linked polymer
  • Eco-friendly non-CFC foam insulation, heat traps and other features combine to yield a higher Energy Factor that maximizes savings on operating costs
  • Our anode rods have a stainless steel core that extends the life of the anode rod allowing superior tank protection far longer than standard anode rods
  • ProLine® Master products have increased anode protection with either longer or multiple anodes depending on model
  • Provides superior corrosion resistance compared to industry standard glass lining
  • Blue Diamond® glass coating blend is formulated in the same lab that creates the protection for our industry-leading commercial product line
  • Our residential water heaters have a solid brass, tamper resistant, enhanced-flow, ball type, drain valve
  • Uses a standard female hose fitting that allows for fast and easy draining during maintenance
  • Designed for easy operation, this valve includes an integral screwdriver slot that features a 1/4 turn (open/close) radius, which not only permits full straight-through water flow but also a quick and positive shut off
  • Low lead content
  • Standard/Approvals: ASHRAE/IESNA 90.1|CSA Certified|CSA Certified and ASME Specified T&P Relief Valve|UL Listed|Meets UBC and ICC National Codes and listed with CEC|Federal Energy Conservation Standards with Energy Policy and Conservation Act (EPCA)
  • INCLUDES: Temperature and Pressure Relief Valve
  • WARRANTY: 8 Years Limited Tank and Parts
