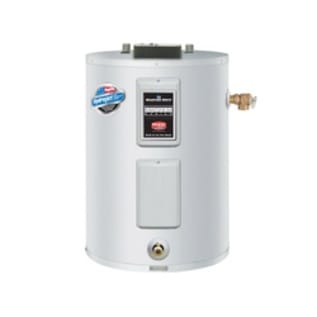

Bradford White® ElectriFLEX LD™ LE120L3-3NCWW Light Duty Lowboy Electric Water Heater, 19 gal Tank, 4.5 kW Power Rating, 208 VAC, 3 Phase
Bradford White® ElectriFLEX LD™ Electric Water Heater, Light Duty Lowboy, Series: LE120L3-3, 19 gal Tank, 208 VAC, 4.5 kW Power, 3 ph, 3/4 in NPT Water Connection, Screw-In Copper Heating Element, 18 gph Recovery Rate, 150 psi Pressure, ASME Yes/No: No, Steel, 18 in Dia x 26 in H Dimensions, Domestic
- Fully automatic thermostat control: Fast acting surface-mount thermostat with high limit energy cut-off (manual reset) for safety
- Direct heat transfer with immersed element: Transfers heat directly and efficiently to the water screw-in style
- Factory installed Hydrojet® sediment reduction system
- Vitraglas® lining
- Vitraglas® is fused to the steel surface by firing at a temperature of over 1600 deg F
- Insulation system: 1 in non-CFC foam insulation covers the sides and top of the tank, reducing the amount of heat loss
- Results in less energy consumption, improved operation efficiencies and jacket rigidity
- Water connection: 3/4 in NPT factory installed true dielectric fittings extend water heater life and eases installation
- Factory installed heat traps: Design incorporates a flexible disk that reduces heat loss in piping and eliminates the potential for noise generation
- Protective magnesium rod: Provides added protection against corrosion for long trouble free service
- Steel tank: Heavy gauge steel automatically formed, rolled and welded to assure a continuous seam for glass lining
- Field convertible: Units are shipped from factory standard 3 ph, non-simultaneous and can be converted to 1 ph and/or simultaneous operation in the field
- Lowboy models are ideal for installations where space is at a premium and are perfect for tight installations such as a closet or under a counter
- Copper screw type immersion element
- Hydrojet® total performance systemNon-simultaneous
- Standard/Approvals: AHRI Certified|ASHRAE 90.1b|CEC Listed|cETLus Listed|CSA Certified|CSAE Certified|Massachusetts Approved|NSF 372|UL 1453|UL 174|PROP65: Cancer and Reproductive Harm - www.P65warnings.ca.gov
- INCLUDES: Temperature and Pressure Relief Valve
- WARRANTY: 3 Years Limited on Tank/1 Year Limited on Componen
Bradford White® ElectriFLEX LD™ Electric Water Heater, Light Duty Lowboy, Series: LE120L3-3, 19 gal Tank, 208 VAC, 4.5 kW Power, 3 ph, 3/4 in NPT Water Connection, Screw-In Copper Heating Element, 18 gph Recovery Rate, 150 psi Pressure, ASME Yes/No: No, Steel, 18 in Dia x 26 in H Dimensions, Domestic
Power in a short package is what you get with these convenient commercial electrics. They're perfect for under counter installations and are field convertible for various wiring configurations.
- Brand: Bradford White®ASME Yes/No: NoDimensions: 18 in Dia x 26 in HDomestic/Import: DomesticHeating Element: Screw-In CopperMaterial: SteelPhase: 3Power Rating: 4.5Pressure Rating: 150Recovery Rate: 18Series: LE120L3-3Tank Capacity: 19Type: Light Duty LowboyVoltage Rating: 208Water Connection: 3/4 in NPT
