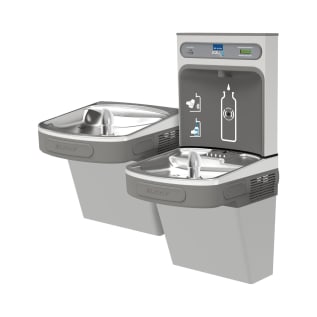

Elkay® LZSTL8WSVRLK Filtered Bottle Filling Station and Bi-Level Cooler, 1.1 gpm, Push Bar/Sensor Operation, Refrigerated Chilling, 2 Stations, Domestic

1155604 MFG #: LZSTL8WSVRLK
$3,417.00 / ea
  • Chilling Option: Refrigerated
  • Dimensions: 19 in D x 51-9/16 in H
  • Domestic/Import: Domestic
  • Drain Connection: 1-1/2
  • Electrical Ratings: 115 VAC 60 Hz 370 W
  • Finish: Light Gray Granite
  • Flow Rate: 1.1
  • Material: Galvanized Steel
  • Mounting Type: Wall
  • Number of Stations: 2
  • Operation: Push Bar/Sensor
  • Refrigerant Type: R-134A
  • Type: Filtered Bi-Level

Elkay® Lead Free Bottle Filling Station and Bi-Level Cooler, Filtered, 1.1 gpm, Operation: Push Bar/Sensor, Chilling Option: Refrigerated, 2 Stations, 1-1/2 in Drain, Wall Mount, 115 VAC, 60 Hz, 370 W, R-134A Refrigerant, Galvanized Steel, Light Gray Granite, 19 in D x 51-9/16 in H, Domestic

Unit shall include electric water cooler with bottle filling station. Model LZSTL8WS shall deliver 8 gph of 50 deg F drinking water at 90 deg F ambient and 80 deg F inlet water. LZSTLDDWS shall deliver non-chilled drinking water. Cooler units shall have push bar activation. Bottle filling unit shall include an electronic sensor for touchless activation with auto 20 sec shut-off timer. Shall include Green Ticker™ displaying count of plastic bottles saved from waste. Bottle filler shall provide 1.1 to 1.5 gpm flow rate with laminar flow to minimize splashing. Shall include the WaterSentry® Plus 3000 gal capacity filter, certified to NSF/ANSI 42 and 53, with visual monitor to indicate when replacement is necessary. Shall include integrated silver ion anti-microbial protection in key areas. Unit shall meet ADA guidelines. Unit shall be lead free design which is certified to NSF/ANSI 61 and 372 and meets Federal and State low-lead requirements. Unit shall be certified to UL399 and CAN/CSA 22.2# 120.

QTY
  • Features
  • Videos
  • Sanitary, touchless activation with auto 20 sec shut-off (bottle filler)
  • Easy-Touch front and side push bar controls (Cooler)
  • WaterSentry® Plus 3000 gal capacity filtration system, certified to NSF/ANSI 42 and 53 (Lead, class 1 Particulate, chlorine, taste and odor)
  • Integrated silver ion anti-microbial protection in key areas
  • Laminar flow provides minimal splash
  • Real drain system eliminates standing water
  • Visual User Interface Display includes innovative Green Ticker™ counts bottles saved from waste and LED Visual Filter Monitor shows when replacement is necessary
  • Versatile cooler design allows units to be installed either left-hand high and right-hand low or left-low and right high
  • Vandal-resistant bubblers feature chrome plated integral hood guard to prevent contamination from other users, airborne deposits and tampering
  • Standard/Approvals: ADA Compliant and ICC A117.1, ASME A112.19.3/CSA B45.4, CAN/CSA C22.2# 120, NSF/ANSI 42, 53, 61, 372 (Lead Free), UL 399 Listed, WQA Certified
  • INCLUDES: LZSTL8WSVRLC Water Cooler, LZWSR Bottle Filler and Filter
  • WARRANTY: 1 Year Limited
