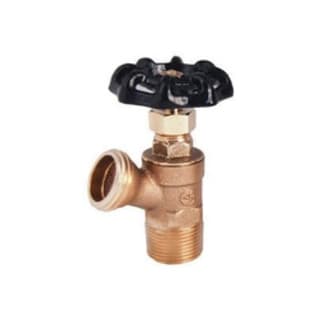

LEGEND 107-143 T-521 Boiler Drain Valve, 1/2 in, MNPT, 125 psi, Brass Body, Import

6822 MFG #: 107-143
$12.28 / ea
  • Actuator Type: Handwheel
  • Body Material: Brass
  • Dimensions: 2.6 in W x 3.6 in H (Open)
  • Domestic/Import: Import
  • End Style: MNPT
  • Media: Oil/Water
  • Nominal Size: 1/2
  • Port Type: Full
  • Pressure Rating: 125
  • Series: T-521
  • Softgoods Material: Buna-N Rubber Seat Washer
  • Trim Material: Cast Brass

LEGEND Boiler Drain Valve, Series: T-521, 1/2 in Nominal, MNPT, 125 psi, Full Port, Media: Oil/Water, Handwheel Actuator, Brass Body, Cast Brass Trim, Buna-N® Rubber Seat Washer, 2.6 in W x 3.6 in H (Open), Import

Legend offers more than 9,000 products representing 80 plus product classes designed for residential, commercial and industrial applications. Everything you many need for behind the wall, Legend has the most expansive offering of valves, fittings, tubing and components for plumbing and hydronic systems.

QTY
  • Features
  • Full-pattern body, stem and handwheel construction is more durable than competitors' reduced-material
  • An electric-induction furnace casting process optimizes molten brass temperature, resulting in superior cast body and bonnet components
  • Equipped with a stem packing and packing nut design, which are superior to packless-bonnet stem seal designs
  • Cast iron handle brass packing nut, NBR (Buna-N) rubber stem packing, stainless steel seat retaining screw, cadmium plated steel handle fastened
  • All 3/4 in GHT (garden hose) outlets accept 3/4 in hose-thread-mounted vacuum breakers
  • Cast brass body
  • Standard/Approvals: ANSI/ASME B1.20.1, CSA, ISO 9002 Certified and NSF 61-9 Certified
  • WARRANTY: 5/25 Years
