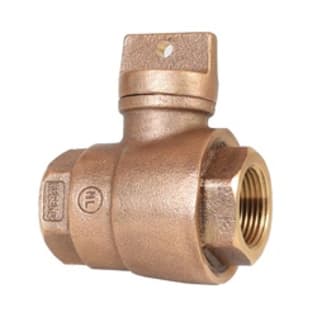

LEGEND 314-256NL T-5500 Curb Stop, 1-1/4 in, FNPT, Cast Bronze, Import
LEGEND Curb Stop, Lead Free, Series: T-5500, 1-1/4 in Nominal, FNPT, 300 psi CWP, 100 deg F, Media: Water, T-Handle Actuator, 4.72 in Inlet to Outlet Length, 2.78 in Top to Inlet Center, Cast Bronze Body, Cast Bronze Trim, Buna-N Stem O-Ring, Import
Documents
- Lead-free design is suitable for all no-lead potable water installations, in full compliance of all lead-free plumbing laws
- 90-degree operation with enclosed operating head stops
- Operating head has been drilled to accept stationary rod cotter pin attachment
- Full-port, ball-and-seat design is superior to plug-type designs
- Durable, PTFE -coated ball assures positive, bubble-tight shutoff, low torque operation and long service life
- For underground water service installations only, to permit shutoff of the water supply, from the water main to the building
- PTFE is a registered trademark of the DuPont company
- 300 psi CWP 100 deg F Max
- Third-party tested and certified in compliance with U.S. Federal Public Law 111-380 (National lead-free plumbing law)
- Cast bronze stem locknut
- Cast bronze end adapter
- Certified lead-free and in compliance with NSF 372 lead content requirements
- Manufactured to AWWA C800 specifications
- Female pipe thread connections comply with ANSI/ASME B1.20.1
- Lead-free
- Standard/Approvals: ANSI B1.20.1|ASME B1.20.1|ASTM B584 UNS C89836|AWWA C800|NSF 372|WQA Certified
LEGEND Curb Stop, Lead Free, Series: T-5500, 1-1/4 in Nominal, FNPT, 300 psi CWP, 100 deg F, Media: Water, T-Handle Actuator, 4.72 in Inlet to Outlet Length, 2.78 in Top to Inlet Center, Cast Bronze Body, Cast Bronze Trim, Buna-N Stem O-Ring, Import
- Brand:Â LEGENDActuator Type:Â T-HandleBody Material:Â Cast BronzeDomestic/Import:Â ImportEnd Style:Â FNPTInlet to Outlet Length:Â 4.72Media:Â WaterNominal Size:Â 1-1/4Pressure Rating:Â 300 psi CWPSeries:Â T-5500Softgoods Material:Â Buna-N Stem O-RingTemperature Rating:Â 100Top to Inlet Center:Â 2.78Trim Material:Â Cast Bronze
