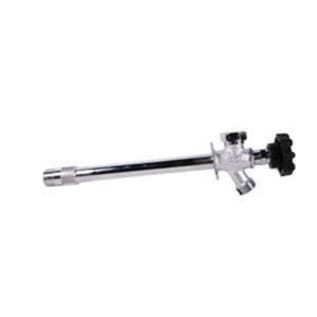

LEGEND 108-028NL TM-550NL Multi-Turn Anti-Siphon Freeze-Resistant Frost Free Sillcock With Brass Cap, 3/4 x 6 in, MNPT x FNPT, Brass Body, Handwheel Actuator, Import

1240445 MFG #: 108-028NL
$62.44 / ea
  • Actuator Type: Handwheel
  • Body Material: Brass
  • Dimensions: 11.88 in L x 3.4 in W
  • Domestic/Import: Import
  • End Style: MNPT x FNPT
  • Finish: Polished Chrome
  • Media: Liquid
  • Nominal Size: 3/4 x 6
  • Pressure Rating: 125 psi CWP
  • Series: TM-550NL
  • Trim Material: Brass
  • Type: Multi-Turn Anti-Siphon Freeze-Resistant

LEGEND Frost Free Sillcock, Multi-Turn Anti-Siphon Freeze-Resistant, Series: TM-550NL, 3/4 x 6 in Nominal, MNPT x FNPT, 125 psi CWP, Media: Liquid, Brass Body, Brass Trim, Handwheel Actuator, Chrome Plated, 11.88 in L x 3.4 in W, Import

QTY
  • Features
  • Easy to grip, Softouch™ handle is made of metal, coated with thermoplastic rubber (TPR) which is UV and weather resistant
  • Easy to turn multi-turn for infinite control of flow
  • Heavy pattern design, extends the handle and hose end spigot from wall of structure
  • Extra hose threads for complete and drip free hose connection
  • All chrome plated brass body and tube is more durable, corrosion resistant and assures long life
  • Integrated vacuum breaker with chrome plated brass cap
  • Oversized flange with closed slots for mounting screws that has 5% pitch to help guide correct installation for proper drainage during normal operation
  • Knurled end less than 1-1/8 in Dia makes the TM-550 ideal for replacement applications
  • End marked top and down for easy positioning when installing
  • Extended solder cup isolating inner components from excess heat during soldering
  • Handle can be removed, lock shield fits standard 1/4 in loose key
  • 6.3 gpm at 25 psi
  • Lead free
  • Standard/Approvals: ANSI/ASME B1.20.1, ASSE 1019, cUPC Listed, UNS Alloy C6802, US Federal Public Law 111-380 (National Lead-Free Plumbing Law)
