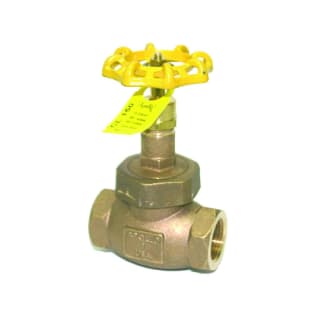

Apollo™ 3322501 122T Globe Valve, 1 in Nominal, NPT End Style, 150 lb, Bronze Body, Handwheel Actuator, Domestic
Apollo™, 3322501, Globe Valve, Series: 122T, 1 in Nominal, NPT End Style, 300 psi CWP Pressure, 150 lb Pressure Class, -20 to 406 deg F, 12.1 gpm Flow Rate, Handwheel Actuator, 5.4 in Open Top to Inlet Center, Bronze Body, PTFE/Brass Trim, Graphite/Grafoil Softgoods, 3-3/4 in L Dimensions, Domestic
- Optimum flow capacity
- Dezincification resistant
- 100% factory tested
- Union bonnet
- Malleable iron rugged hand wheel
- Back seat protection
- PTFE seat and disc/brass stem
- Standard/Approvals: ASME B1.20.1|ASTM B21 UNS C46400 Stem|ASTM B62 Body|MSS SP-80|MSS SP-104|PROP65: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
- WARRANTY: 5 Years
Apollo™, 3322501, Globe Valve, Series: 122T, 1 in Nominal, NPT End Style, 300 psi CWP Pressure, 150 lb Pressure Class, -20 to 406 deg F, 12.1 gpm Flow Rate, Handwheel Actuator, 5.4 in Open Top to Inlet Center, Bronze Body, PTFE/Brass Trim, Graphite/Grafoil Softgoods, 3-3/4 in L Dimensions, Domestic
The Apollo™ Model 122T (33 Series) Globe Valve provides a cost effective Made in the USA alternative to globally sourced multi-turn valves. These valves are cast, machined, assembled, and tested in South Carolina. The Apollo™ globe valve can reliably be installed in most plumbing and heating systems (or building service piping).
- Brand: Apollo™Actuator Type: HandwheelBody Material: BronzeDimensions: 3-3/4 in LDomestic/Import: DomesticEnd Style: NPTFlow Rate: 12.1Nominal Size: 1Pressure Class: 150Pressure Rating: 300 psi CWP/150 psi SWPSeries: 122TSoftgoods Material: Graphite/Grafoil®Temperature Rating: -20 to 406Top to Inlet Center: 5.4 in OpenTrim Material: PTFE/Brass
Apollo™ 3322501 122T Globe Valve, 1 in Nominal, NPT End Style, 150 lb, Bronze Body, Handwheel Actuator, Domestic
Apollo™, 3322501, Globe Valve, Series: 122T, 1 in Nominal, NPT End Style, 300 psi CWP Pressure, 150 lb Pressure Class, -20 to 406 deg F, 12.1 gpm Flow Rate, Handwheel Actuator, 5.4 in Open Top to Inlet Center, Bronze Body, PTFE/Brass Trim, Graphite/Grafoil Softgoods, 3-3/4 in L Dimensions, Domestic
