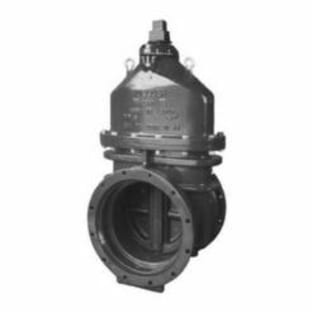

Mueller Co A-2361-19-8 Non Rising Stem Resilient Wedge Gate Valve, 8 in, Mechanical Joint x Flange, 125 lb, Ductile Iron Body
Mueller Co Gate Valve, Non Rising Stem Resilient Wedge, 8 in Nominal Size, Mechanical Joint x Flange, 350/700 psi, 125 lb, 12.09 in Inlet to Outlet Length, 21-1/2 in Top to Inlet Center, Ductile Iron Body, Bronze Stem Trim, Nitrile Stuffing Box O-Ring/Acetal Washer, Epoxy Coated
Documents
- Iron wedge, symmetrical and fully encapsulated with molded rubber, no exposed iron
- Triple O-ring seal
- 2 in square wrench nut open left or open right
- Standard/Approvals: UL 262|FM 1120/1130|ANSI/AWWA C111/C515/C550|ANSI/NSF 61/372
Mueller Co Gate Valve, Non Rising Stem Resilient Wedge, 8 in Nominal Size, Mechanical Joint x Flange, 350/700 psi, 125 lb, 12.09 in Inlet to Outlet Length, 21-1/2 in Top to Inlet Center, Ductile Iron Body, Bronze Stem Trim, Nitrile Stuffing Box O-Ring/Acetal Washer, Epoxy Coated
- Brand:Â Mueller CoBody Material:Â Ductile IronEnd Style:Â Mechanical Joint x FlangeFinish:Â Epoxy CoatedInlet to Outlet Length:Â 12.09Nominal Size:Â 8Pressure Class:Â 125 lbPressure Rating:Â 350/700Softgoods Material:Â Nitrile Stuffing Box O-Ring/Acetal WasherTop to Inlet Center:Â 21-1/2Trim Material:Â Bronze StemType:Â Non Rising Stem Resilient Wedge
Mueller Co A-2361-19-8 Non Rising Stem Resilient Wedge Gate Valve, 8 in, Mechanical Joint x Flange, 125 lb, Ductile Iron Body
Mueller Co Gate Valve, Non Rising Stem Resilient Wedge, 8 in Nominal Size, Mechanical Joint x Flange, 350/700 psi, 125 lb, 12.09 in Inlet to Outlet Length, 21-1/2 in Top to Inlet Center, Ductile Iron Body, Bronze Stem Trim, Nitrile Stuffing Box O-Ring/Acetal Washer, Epoxy Coated
