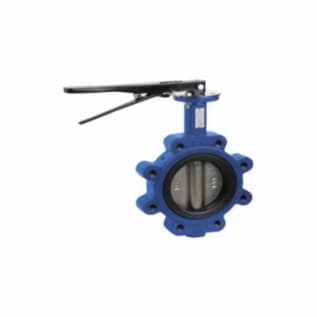

RWV® 938BESLAB 4 Lug Style Butterfly Valve, 4 in Nominal, Ductile Iron Body, NBR Softgoods
RWV® Butterfly Valve, Lug Style, Series: 938, 4 in Nominal, -30 to 275 deg F, Media: Water, Lever Handle Actuator, 2.05 in Inlet to Outlet Length, Ductile Iron Body, Aluminum Bronze Disc, 416 Stainless Steel (Stem)/Stainless Steel (Taper Pin) Stem & Pin Material, NBR
Documents
- EPDM seat
- Suitable for bidirectional and dead end service
- NBR O-ring
- ISO 5211 mounting flange
- Standard/Approvals: MSS-SP-67
RWV® Butterfly Valve, Lug Style, Series: 938, 4 in Nominal, -30 to 275 deg F, Media: Water, Lever Handle Actuator, 2.05 in Inlet to Outlet Length, Ductile Iron Body, Aluminum Bronze Disc, 416 Stainless Steel (Stem)/Stainless Steel (Taper Pin) Stem & Pin Material, NBR
- Brand: RWV®Actuator Type: Lever HandleBody Material: Ductile IronInlet to Outlet Length: 2.05Media: WaterNominal Size: 4Series: 938Softgoods Material: NBRTemperature Rating: -30 to 275Type: Lug Style
RWV® 938BESLAB 4 Lug Style Butterfly Valve, 4 in Nominal, Ductile Iron Body, NBR Softgoods
RWV® Butterfly Valve, Lug Style, Series: 938, 4 in Nominal, -30 to 275 deg F, Media: Water, Lever Handle Actuator, 2.05 in Inlet to Outlet Length, Ductile Iron Body, Aluminum Bronze Disc, 416 Stainless Steel (Stem)/Stainless Steel (Taper Pin) Stem & Pin Material, NBR
