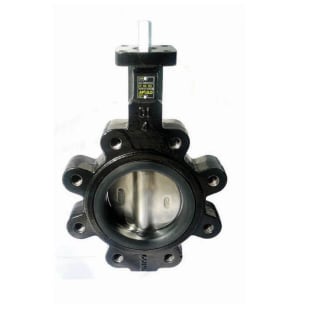

Apollo™ Apollo International™ LD14106BE11 Lug Style Resilient Seated Butterfly Valve, 6 in, Ductile Iron Body

1355530 MFG #: LD-141-06-B-E-1-1
$489.71 / ea
  • Actuator Type: 10-Position Handle
  • Body Material: Ductile Iron
  • End Style: Flanged
  • Nominal Size: 6
  • Pressure Class: 125/150
  • Series: LD141
  • Softgoods Material: EPDM
  • Temperature Rating: -20 to 250 deg F Intermittent/225 deg F Continuous
  • Top to Inlet Center: 8.88
  • Type: Resilient Seated Lug Style

Apollo™ Apollo International™ Resilient Seated Butterfly Valve, Lug Style, Series: LD141, 6 in Nominal, 200 psi, 225 deg F, 10-Position Handle Actuator, 8.88 in Top to Inlet Center, Ductile Iron Body, EPDM Seat/Buna-N® Stem Seal/Glass Reinforced Epoxy Resin Bushing

The Apollo® LD141/WD141 series ductile iron butterfly valves are ideal for use in Industrial and Commercial/HVAC/Mechanical applications. The WD141 series is a wafer style valve and the LD141 series is a companion lug style. Available in sizes 2 to 24 in lug and 2 to 12 in wafer.

  • Features
  • Videos
  • Compatible with ANSI 125 lb and 150 lb flanges
  • ISO 5211 top plate allows choice of Apollo® pneumatic actuators and gear operators
  • LD141 series suitable for end of line service to rated pressure (2 to 24 in)
  • 3 to 24 in meet performance requirements of AWWA C-504
  • Valves are full lug with tapped lugs, to ANSI 125/150 drilling
  • Face-to-face dimensions meet universal interchangeability standards outlined in MSS SP-67 and API 609
  • Through shaft assures positive disc positioning and dependable performance
  • Weather seal shaft equipped with weather seal to prevent external media from entering the shaft bore
  • Square shaft-to-disc connection provides a robust shaft-to-disc connection without pins or bolts
  • Three bushings supports shaft at three locations to enhance shaft alignment and absorb actuator side thrusts
  • Factory tested to 110% of full rated pressure in both directions before shipping
  • Profiled disc design precision machined disc edge creates bubble tight shutoff, primary seal
  • Shaft seal the shaft diameter is greater than the diameter of the seat’s shaft hole creating a robust shaft seal
  • All valves are 100% factory tested before shipping
  • Aluminum bronze disc
  • -20 to 250 deg F intermittent, 225 deg F continuous black EPDM seat
  • 416 stainless steel shaft
  • Standard/Approvals: API 609, ASTM A536 Body, AWWA C-504, CRN OC/2102CL, Lead Free Compliant, MSS SP-67 Compliant, NSF/ANSI 372, NSF/ANSI 61, Federal Public Law 111-380 ANSI 3rd Party Approved and Listed
  • WARRANTY: 5 Years
