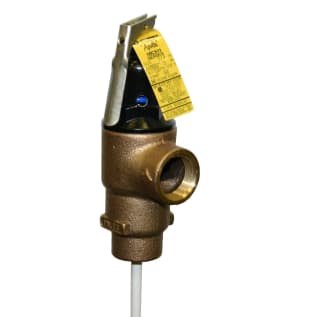

Apollo™ 18C5115150 18C-500 High Capacity Temperature and Pressure Relief Valve, 3/4 in, MNPT, 125 to 150 psig, Bronze Body, Domestic

903356 MFG #: 18C5115150
$298.73 / ea
Apollo™ 18C5115150 18C-500 High Capacity Temperature and Pressure Relief Valve, 3/4 in, MNPT, 125 to 150 psig, Bronze Body, Domestic
  • Body Material: Bronze
  • Domestic/Import: Domestic
  • End Style: MNPT
  • Media: Water
  • Nominal Size: 3/4
  • Pressure Rating: 125 to 150
  • Series: 18C-500
  • Softgoods Material: Nylon Element Tube Coating
  • Temperature Rating: 210
  • Top to Inlet Center: 3-1/2
  • Trim Material: Brass
  • Type: High Capacity

Apollo™ Temperature and Pressure Relief Valve, High Capacity, Series: 18C-500, 3/4 in Nominal, MNPT, 125 to 150 psig, 210 deg F, Media: Water, 3-1/2 in Top to Inlet Center, Bronze Body, Brass Trim, Nylon Element Tube Coating, Domestic

The Apollo® TPC bronze automatic temperature and pressure relief valves are used for protection of high capacity commercial hot water heaters and storage tanks.

QTY
Add to List
  • Features
  • Videos
  • ASME section IV certified capacity
  • Coated element protects against corrosion
  • ASME section IV heating boilers
  • Silicone seat disc
  • Standard/Approvals: ASME Section IV Certified, ANSI Z21.22 , CSA- 0G1438.6C, ISO 9001:2008 Registered
  • WARRANTY: 5 Years
