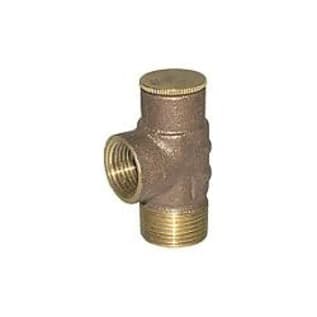

LEGEND 111-304NL T-50NL PRV Pressure Relief Valve, 3/4 in, MNPT x FNPT, 150 psi, Brass Body, Import

1164883 MFG #: 111-304NL
$12.67 / ea
  • Application: For Potable Water Installations
  • Body Material: Brass
  • Brand: LEGEND
  • Dimensions: 2.48 in L x 1.42 in W
  • Domestic/Import: Import
  • End Style: MNPT x FNPT
  • Manufacturer: Legend
  • Media: Water
  • Nominal Size: 3/4 in
  • Pressure Rating: 150 psi
  • Series: T-50NL PRV
  • Softgoods Material: EPDM Rubber Seat Washer/Nitrilic Bonded Non-Asbestos Fiber Cap Seal
  • Temperature Rating: 180 deg F

LEGEND Pressure Relief Valve, Series: T-50NL PRV, 3/4 in Nominal, MNPT x FNPT, 150 psi, 180 deg F, Media: Water, Brass Body, EPDM Rubber Seat Washer/Nitrilic Bonded Non-Asbestos Fiber Cap Seal, 2.48 in L x 1.42 in W, Import

Legend offers more than 9,000 products representing 80 plus product classes designed for residential, commercial and industrial applications. Everything you many need for behind the wall, Legend has the most expansive offering of valves, fittings, tubing and components for plumbing and hydronic systems.

QTY
  • Features
  • Lead free design is suitable for all no lead potable water installations in full compliance of all lead free plumbing laws
  • Available with two factory pre-set water pressure relief pressures, to accommodate residential and commercial well applications 75 psi and 100 psi
  • Designed and calibrated for water well pressure relief, to prevent system damage
  • Adjustable relief pressures, from 75 or 100 psi to 150 psi
  • Heavy duty stainless steel coil-spring design ensures positive closure
  • Lead free forged brass access cap, nitrilic-bonded non-asbestos fiber cap seal lead free forged brass disc stainless steel spring, lead free forged brass seat-spring piston, EPDM rubber seat washer, copper seat screw, lead free forged brass body
  • Standard/Approvals: ANSI/ASME B1.20.1, cUPC Certified, CSA Certified, ISO 9002 Certified, U.S. Federal Public Law 111-380
  • WARRANTY: 5/25 Years
