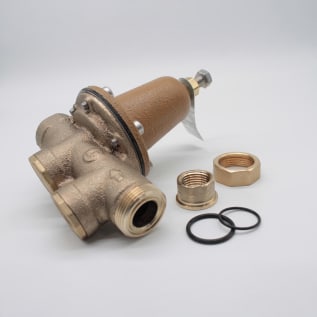

WATTS® 0009217 LF25AUB Lead Free Pressure Reducing Valve, 1/2 in Nominal, FNPT Union x FNPT End Style, 25 to 75 psi Pressure, Cast Copper Silicon Alloy Body, Import
WATTS®, 0009217, Pressure Reducing Valve, Lead Free, Series: LF25AUB, 1/2 in Nominal, FNPT Union x FNPT End Style, 25 to 75 psi Pressure, 33 to 160 deg F, Media: Water, 5-3/8 in Inlet to Outlet Length, 7 in Top to Inlet Center, Cast Copper Silicon Alloy Body, Reinforced EPDM Diaphragm/Polymer Seat Softgoods, Import
- Bypass feature controls thermal expansion pressure
- Replaceable seat module
- Sealed spring cage with stainless steel cage screws
- Integral stainless steel strainer removable for cleaning
- Serviceable in line
- Standard/Approvals: ANSI A112.26.2|ASSE Standard 1003|CSA Standard B356|IAPMO Listed|MIL-V-18146B Type I|NSF Approved|Southern Standard Plumbing Code | PROP65: This product can expose you to chemicals including lead which is known to the State of California to cause cancer and birth defects or other reproductive harm.
- WARRANTY: 1 Year Limited
WATTS®, 0009217, Pressure Reducing Valve, Lead Free, Series: LF25AUB, 1/2 in Nominal, FNPT Union x FNPT End Style, 25 to 75 psi Pressure, 33 to 160 deg F, Media: Water, 5-3/8 in Inlet to Outlet Length, 7 in Top to Inlet Center, Cast Copper Silicon Alloy Body, Reinforced EPDM Diaphragm/Polymer Seat Softgoods, Import
Series LF25AUB-Z3 Lead Free Water Pressure Reducing Valves are used in commercial and residential applications to reduce incoming water pressure for protection of plumbing system components and to reduce water consumption. It consists of a Lead Free copper silicon alloy body construction, union inlet connection, integral stainless steel strainer and high temperature resistant reinforced diaphragm for hot water. The Series LF25AUB-Z3 is available with a variety of end connections including: threaded, solder, PEX, quick-connect and CPVC with both union and double union connections. Series LF25AUB-Z3 has an adjustable pressure range and is serviceable in-line.
- Brand: WATTS®Body Material: Cast Copper Silicon AlloyDomestic/Import: ImportEnd Style: FNPT Union x FNPTInlet to Outlet Length: 5-3/8Media: WaterNominal Size: 1/2Pressure Range: 25 to 75Series: LF25AUBSoftgoods Material: Reinforced EPDM Diaphragm/Polymer SeatTemperature Rating: 33 to 160Top to Inlet Center: 7
WATTS® 0009217 LF25AUB Lead Free Pressure Reducing Valve, 1/2 in Nominal, FNPT Union x FNPT End Style, 25 to 75 psi Pressure, Cast Copper Silicon Alloy Body, Import
WATTS®, 0009217, Pressure Reducing Valve, Lead Free, Series: LF25AUB, 1/2 in Nominal, FNPT Union x FNPT End Style, 25 to 75 psi Pressure, 33 to 160 deg F, Media: Water, 5-3/8 in Inlet to Outlet Length, 7 in Top to Inlet Center, Cast Copper Silicon Alloy Body, Reinforced EPDM Diaphragm/Polymer Seat Softgoods, Import
