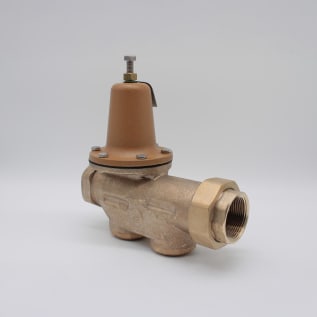

WATTS® 0009431 LF25AUB-Z3 Pressure Reducing Valve, 1-1/2 in, FNPT Union x FNPT, 25 to 75 psi, Copper Silicon Alloy Body

1146194 MFG #: 0009431
$1,760.00 / ea
WATTS® 0009431 LF25AUB-Z3 Pressure Reducing Valve, 1-1/2 in, FNPT Union x FNPT, 25 to 75 psi, Copper Silicon Alloy Body
  • Body Material: Cast Copper Silicon Alloy
  • Dimensions: 8-1/4 in L x 4-1/16 in W x 9-1/2 in H
  • Domestic/Import: Domestic
  • End Style: FNPT Union x FNPT
  • Media: Water
  • Nominal Size: 1-1/2
  • Pressure Range: 25 to 75
  • Series: LF25AUB-Z3
  • Softgoods Material: Stainless Steel
  • Temperature Rating: 33 to 160

WATTS® Pressure Reducing Valve, Series: LF25AUB-Z3, 1-1/2 in Nominal Size, FNPT Union x FNPT, 25 to 75 psi, 33 to 160 deg F, Media: Water, Copper Silicon Alloy Body, Stainless Steel, 8-1/4 in L x 4-1/16 in W x 9-1/2 in H

Series LF25AUB-Z3 Lead Free* Water Pressure Reducing Valves are used in commercial and residential applications to reduce incoming water pressure for protection of plumbing system components and to reduce water consumption. It consists of a Lead Free* copper silicon alloy body construction, union inlet connection, integral stainless steel strainer and high temperature resistant reinforced diaphragm for hot water. The Series LF25AUB-Z3 is available with a variety of end connections including: threaded, solder, PEX, quick-connect and CPVC with both union and double union connections. Series LF25AUB-Z3 has an adjustable pressure range and is serviceable in-line. Maximum Working Pressure: 300psi (21 bar), Adjustable Reduced Pressure Range: 25 to 75psi (172 to 517 kPa), Standard Pressure Setting: 50psi (344kPa).

QTY
Add to List
  • Features
  • Standard construction includes Z3 sealed spring cage and stainless steel corrosion resistant adjusting cage screws for accessible outdoor or pit installations
  • Integral stainless steel strainer
  • Replaceable seat module
  • Lead free cast copper silicon alloy body construction
  • Serviceable in line
  • Bypass feature controls thermal expansion pressure
  • High temperature resistant reinforced diaphragm for hot water
  • The wetted surface of this product contacted by consumable water contains less than 0.25% of lead by weight
  • The bypass feature will not prevent the pressure relief valve from opening on the hot water supply system with pressure above 150psi (10.3 bar)
  • 50 psi standard reduced pressure setting
  • Reinforced EPDM with PTFE wetted surface diaphragm
  • The bypass feature will not prevent the pressure relief valve from opening on the hot water supply system with pressure above 150psi
  • Standard/Approvals: ANSI A112.26.2, ASSE 1003, CSA B356,IAPMO Listed, Military Standard MIL-V-18146B, Southern Standard Plumbing Code
  • INCLUDES: Z3 Sealed Spring Cage and Stainless Steel Corrosion-Resistant Adjusting and Cage Screws
  • WARRANTY: Limited
