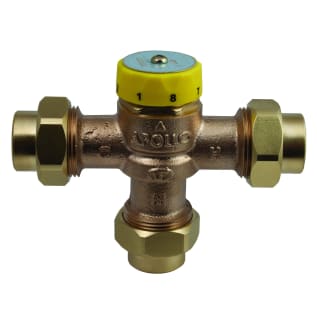

Apollo™ 34ALF215T 34ALF Master Thermostatic Mixing Valve, 1 in Nominal, FNPT End Style, 150 psi Pressure, 0.5 gpm Flow, Bronze Body, Domestic
Apollo™, 34ALF215T, Thermostatic Mixing Valve, Master, Series: 34ALF, 1 in Nominal, FNPT End Style, 150 psi Pressure, 210 deg F, 0.5 gpm Flow, Media: Water, 4.56 in Inlet to Outlet Length, Bronze Body, Chloramine Resistant EPDM O-Ring Softgoods, Domestic
Documents
- Superior thermostatic element technology for optimum performance, reliability and accuracy
- Integral inlet strainers and check valves to protect against cross-flow and foreign particles in the piping system
- Thermostat over-temperature protection
- Tamper resistant maximum temperature calibration option
- Fingertip temperature control
- Instantaneous cold or hot water supply failure shut-off protection
- Multiple connection options to fit your specific needs
- 39 to 80 deg F (4 to 27 deg C) cold water inlet
- 120 to 180 deg F (49 to 82 deg C) hot water inlet
- 85 to 140 deg F (30 to 60 deg C) mixed water
- Flowrate at 30 psid - 19 gpm (64 lpm)
- Lead free - the wetted surfaces of this product shall contain no more than 0.25% lead by weighted average
- Standard/Approvals: ASSE 1017|CSA B125.3|cCSAus Certified|NSF 372|UNS C89836 Body|PROP65: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
- WARRANTY: 5 Years
Apollo™, 34ALF215T, Thermostatic Mixing Valve, Master, Series: 34ALF, 1 in Nominal, FNPT End Style, 150 psi Pressure, 210 deg F, 0.5 gpm Flow, Media: Water, 4.56 in Inlet to Outlet Length, Bronze Body, Chloramine Resistant EPDM O-Ring Softgoods, Domestic
The Apollo® MVA-LF (34ALF Series) thermostatic master mixing valves are designed for ASSE 1017 Point of Source approved applications. They provide hot water temperature control of potable and non-potable hot water distribution systems. The valves are built using Lead Free materials and are available with a variety of options and end connections.
- Brand: Apollo™Body Material: BronzeDomestic/Import: DomesticEnd Style: FNPTFlow Capacity: 0.5 gpmInlet to Outlet Length: 4.56Media: WaterNominal Size: 1 inPressure Rating: 150 psigSeries: 34ALFSoftgoods Material: Chloramine Resistant EPDM O-RingTemperature Rating: 210 deg FType: Master
