Uponor

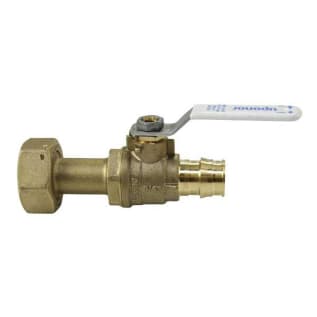

Uponor WS4820750 Straight Water Meter Valve Connector, 3/4 x 1 in, PEX x NPSM, Import
Uponor Water Meter Valve Connector, Straight, 3/4 x 1 in Nominal Size, PEX x NPSM, 250 psi, 250 deg F, Import
Documents
- 0.118 in Thk EPDM gasket
- -30 deg F minimum fluid temperature
- 250 deg F maximum temperature (no pressure)
- 3/4 to 1 in EP nut: Polypropylene GF30 black
- Metal nut
- Lead Free
- Standard/Approvals: Annex G|ASTM B283/B283M C27453/F877|ASTM F1960 Tubing|CAN/CSA B137.5|IPC|NPC of Canada|NSPC|ANSI/NSF 14|ANSI/NSF 61|NSF 359|UPC Listed|UP Code
- WARRANTY: 5 Years
Uponor Water Meter Valve Connector, Straight, 3/4 x 1 in Nominal Size, PEX x NPSM, 250 psi, 250 deg F, Import
Targeted for commercial multifamily sub-metering as well as residential whole-home metering, Uponor's ProPEX® water service offering is designed for direct connection to water meters sized 5/8 to 1 in. ProPEX® LF brass water meter valves provide a straight or 90-degree connection to water meters for 3/4 and 1 in Uponor AquaPEX® tubing. They are sold as a kit containing the valve along with a gasket and two swivel nuts (EP nuts for plastic meters and metal nuts for metal meters).
- Brand:Â UponorEnd Style:Â PEX x NPSMNominal Size:Â 3/4 x 1Pressure Rating:Â 250Temperature Rating:Â 250Type:Â StraightDomestic/Import:Â Import
