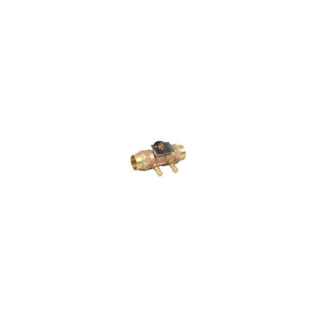

WATTS® 0856811 LFCSM-61-S Flow Measurement Valve, 1 in, Solder, Brass Body
- Body Material: Brass
- End Style: Solder
- Inlet to Outlet Length: 3-13/16
- Nominal Size: 1
- Pressure Rating: 125
- Series: CSM
- Temperature Rating: 200
- Top to Inlet Center: 1-7/8
- Trim Material: Glass Filled PTFE
- Domestic/Import: Domestic
WATTS® Flow Measurement Valve, Series: LFCSM-61-S, 1 in Nominal, Solder, 125 psi, 200 deg F, 3-13/16 in Inlet to Outlet Length, 1-7/8 in Top to Inlet Center, Brass Body, Glass Filled PTFE Trim
This 1 in lead free flow measurement valve monitors system flow in low to medium flow rate HVAC units, providing a highly accurate flow measurement. It consists of lead free body construction with bi-directional, positive shutoff ball valve design, blow-out proof stem, a position indicator, memory device, checked metering ports with drip caps, two pressure taps, integral drain ports and a drain plug. It has a compact size which allows for easy installation and access in a crowded piping environment and is ideal in hot/chilled water units such as fan coil units, water source heat pumps, unit heaters, unit ventilators, finned radiation and small domestic hot water lines.
- Features
- Easy to use memory
- Bi-directional flow
- Positive shutoff
- Safe "blowout" resistant stem
- Integral drain port
- The wetted surface of this product contacted by consumable water contains less than 0.25% of lead by weight
- Standard/Approvals: NSF 61
