1181221

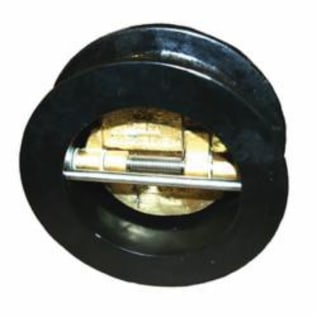

Apollo™ 6WC100E1 Wafer Check Valve, 3 in, 125 lb, 191 gpm, Cast Iron Body
Specialty Check Valves
MPN: 1181221 6052459 MFG #: 6WC100E1
503.15000 / ea
  • Body Material: Cast Iron
  • Dimensions: 5.25 in Dia x 2.62 in H
  • Finish: Epoxy Coated
  • Flow Rate: 191
  • Nominal Size: 3
  • Pressure Class: 125
  • Pressure Rating: 200
  • Series: 6WC
  • Temperature Rating: -20 to 180
  • Trim Material: 316 Stainless Steel/Aluminum Bronze/Buna-N (Nitrile) Seat Ring
  • Type: Wafer

Apollo™ Wafer Check Valve, Series: 6WC, 3 in Nominal Size, 200 psi, 125 lb, -20 to 180 deg F, 191 gpm, Cast Iron Body, Aluminum Bronze/Stainless Steel Trim, EPDM Seat Ring, Epoxy Coated, 5.25 in Dia x 2.62 in H

QTY
  • Features
  • Full port design
  • Compatible with ANSI class 125 and 150 flanges
  • Minimal pressure drop
  • Light weight
  • Spring assisted closing for quicker response
  • Standard/Approvals: NSF/ANSI 61, CSA B51-CRN
