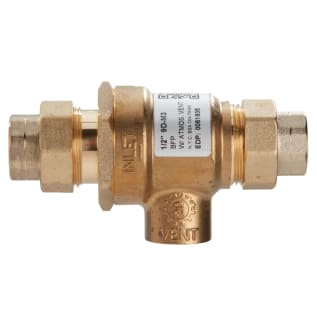

WATTS® 0061935 9D Series Dual Check Valve With Intermediate Atmospheric Vent, 1/2 in, Forged Brass Body
Specialty Check Valves
MPN: 108182 4076850 MFG #: 0061935
208.00000 / ea
  • Body Material: Forged Brass
  • Dimensions: 4-15/16 in W x 2-9/16 in H
  • Domestic/Import: Domestic
  • End Style: Union FNPT x Union Joint
  • Media: Water
  • Nominal Size: 1/2
  • Pressure Rating: 175
  • Series: 9D Series
  • Temperature Rating: 250
  • Backflow Type: Dual Check

WATTS® Dual Check Valve, 1/2 in Nominal Size, 25 to 175 psi, 33 to 250 deg F, Forged Brass Body

Series 9D is specially made for smaller supply lines and ideally suited for laboratory equipment, processing tanks, sterilizers, dairy equipment and similar applications. It is particularly recommended for boiler feed lines to prevent backflow when supply pressure falls below system pressure. Series 9D is suitable for use on hot or cold water and can be used under continuous pressure. It features a primary check valve utilizing a rubber disc seating against a mating rubber part to ensure tight closing. A secondary check valve utilizes a rubber disc-to-metal seating. In the event of fouling of the downstream check valve, leakage would be vented to atmosphere through the vent port thereby safeguarding the potable water system. Construction is brass body with stainless steel working parts, integral strainer and durable rubber discs. Female union inlet and outlet connections. Sizes 1/2 in and 3/4 in. Drain is 1/2 in thread connection.

  • Features
  • True line-sized construction allows the check modules to open further allowing dirt and debris to pass more freely reducing check fouling
  • Stainless steel internal parts
  • Maximum flow at low pressure drop
  • Furnished with union connections to facilitate removal and replacement for maintenance
  • Compact for economy combined with performance
  • Design simplicity for easy maintenance
  • Can be installed vertically or horizontally
  • Durable, tight seating rubber check valve assemblies
  • Standard/Approvals: ASSE 1012, CSA B64
  • WARRANTY: Limited
