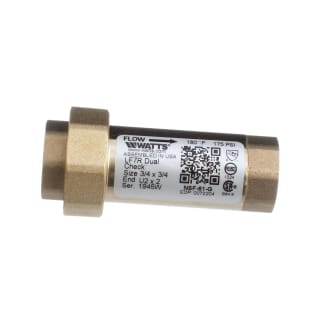

WATTS® 0072204 LF7R Dual Check Valve, 3/4 in Nominal, FNPT End Style, Copper Silicon Alloy Body, Domestic
WATTS®, 0072204, Dual Check Valve, Series: LF7R, 3/4 in Nominal, FNPT End Style, 175 psi Pressure, 33 to 180 deg F, Yes Low Lead Compliance, Media: Water, 3-5/8 in Inlet to Outlet Length, Copper Silicon Alloy Body, Stainless Steel Spring/Santoprene Disc Trim, EPDM Seal Softgoods, 1-7/8 in H Dimensions, Domestic
- Lead-free brass body for durability
- Can be installed in the vertical or horizontal position
- Compact design
- Standard/Approvals: ANSI/ASSE 1024|cCSAus B64.6|NSF Approved|cUPC Listed | PROP65: This product can expose you to chemicals including lead which is known to the State of California to cause cancer and birth defects or other reproductive harm.
- WARRANTY: 1 Year Limited
WATTS®, 0072204, Dual Check Valve, Series: LF7R, 3/4 in Nominal, FNPT End Style, 175 psi Pressure, 33 to 180 deg F, Yes Low Lead Compliance, Media: Water, 3-5/8 in Inlet to Outlet Length, Copper Silicon Alloy Body, Stainless Steel Spring/Santoprene Disc Trim, EPDM Seal Softgoods, 1-7/8 in H Dimensions, Domestic
Series LF7R Lead Free* Dual Check Valves prevent the reverse flow of polluted water from entering into the drinking water supply at the service entrance or at individual outlets. It consists of a Lead Free* cast copper silicon alloy body construction, with two compact replaceable plastic check modules, and stainless steel springs. Series LF7R is designed for non-health hazard residential water system containment, continuous pressure applications. It is installed immediately downstream of the residential water meter, in a vertical or horizontal position. Check with local inspection authorities for installation requirements. Minimum Working Pressure: 10psi (69 kpa) Maximum Working Pressure: 175psi (12 bar).
- Brand: WATTS®Body Material: Copper Silicon AlloyDimensions: 1-7/8 in HDomestic/Import: DomesticEnd Style: FNPTInlet to Outlet Length: 3-5/8Low Lead Compliance: YesMedia: WaterNominal Size: 3/4Pressure Rating: 175Series: LF7RU2-2Softgoods Material: EPDM SealTemperature Rating: 33 to 180Trim Material: Stainless Steel Spring/Santoprene Disc
