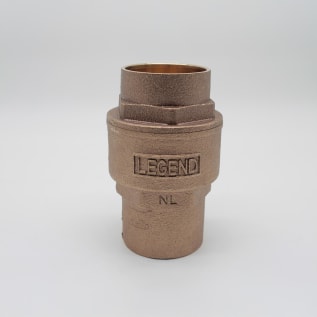

LEGEND GREEN™ 105-468NL S-455NL In-Line Check Valve, 2 in Nominal, C End Style, Bronze Body, Import
LEGEND GREEN™ In-Line Check Valve, Series: S-455NL, 2 in Nominal, C End Style, 250 psi CWP Pressure, 200 deg F, Yes Low Lead Compliance, Spring-Loaded Latch-Lock Handle Actuator, 5.08 in Inlet to Outlet Length, Bronze Body, Buna-N (NBR) Rubber Seat Disc/Phosphor Bronze Wire Spring Trim, 3.14 in H Dimensions, Import
Documents
- Durable, heavy-wall cast bronze design is ideal for commercial or industrial applications
- Spring-loaded silent closure operation
- The 1/2 lb cracking pressure spring rate permits faster low-pressure opening without sacrificing quick closure in backflow scenarios
- Bore-guided stem-poppet minimizes over-travel, reducing the chance of premature wear and failure
- Can be installed in the vertical or horizontal position
- Not for reciprocating air compressor installations
- Lead-free design is suitable for all state and federal public law (111-380) potable water installations
- cast bronze construction
- Standard/Approvals: ANSI/ASME B16.18|ASTM B584 UNS C89844 Body|ASTM B159 UNS C51000 Spring|ISO 9002|MSS SP 80|NSF/ANSI 372|US Federal Public Law 111-380 (National Lead-Free Plumbing Law)|WQA® Certified
- WARRANTY: 5 Years
LEGEND GREEN™ In-Line Check Valve, Series: S-455NL, 2 in Nominal, C End Style, 250 psi CWP Pressure, 200 deg F, Yes Low Lead Compliance, Spring-Loaded Latch-Lock Handle Actuator, 5.08 in Inlet to Outlet Length, Bronze Body, Buna-N (NBR) Rubber Seat Disc/Phosphor Bronze Wire Spring Trim, 3.14 in H Dimensions, Import
- Brand: LEGENDActuator Type: Spring-Loaded Latch-Lock HandleBody Material: BronzeDimensions: 3.14 in HDomestic/Import: ImportEnd Style: CInlet to Outlet Length: 5.08Low Lead Compliance: YesNominal Size: 2Pressure Rating: 250 psi CWPSeries: S-455NLTemperature Rating: 200Trim Material: Buna-N (NBR) Rubber Seat Disc/Phosphor Bronze Wire Spring
LEGEND GREEN™ 105-468NL S-455NL In-Line Check Valve, 2 in Nominal, C End Style, Bronze Body, Import
LEGEND GREEN™ In-Line Check Valve, Series: S-455NL, 2 in Nominal, C End Style, 250 psi CWP Pressure, 200 deg F, Yes Low Lead Compliance, Spring-Loaded Latch-Lock Handle Actuator, 5.08 in Inlet to Outlet Length, Bronze Body, Buna-N (NBR) Rubber Seat Disc/Phosphor Bronze Wire Spring Trim, 3.14 in H Dimensions, Import
