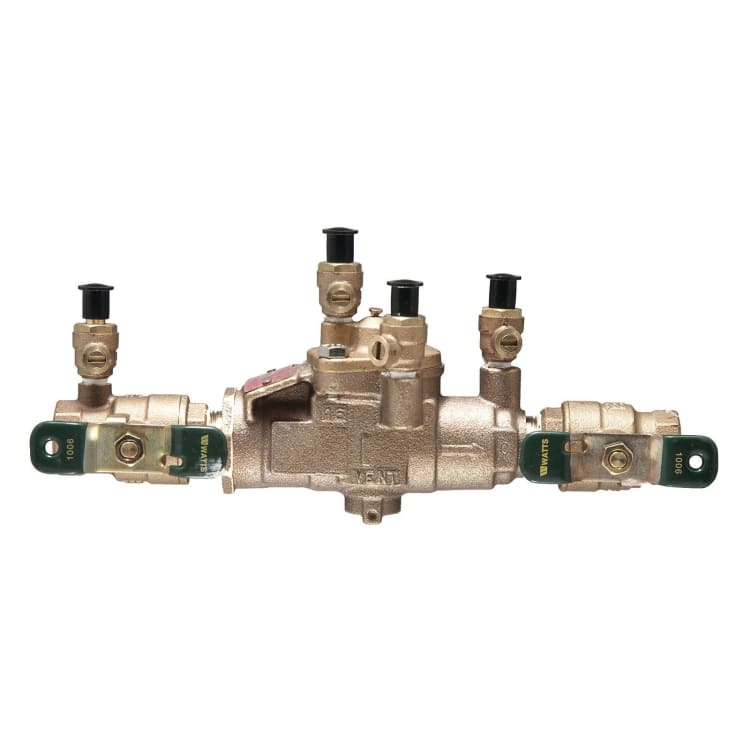

WATTS® 0391003 LF009 Inline Reduced Pressure Zone Assembly, 3/4 in Nominal, NPT End Style, Quarter-Turn Ball Valve, Cast Copper Silicon Alloy Body, Reduced Pressure Zone, 7.5 fps Flow Rate, Domestic
WATTS®, 0391003, Reduced Pressure Zone Assembly, Inline, Series: LF009, 3/4 in Nominal, NPT End Style, 175 psi Pressure, 33 to 180 deg F, 7.5 fps Flow Rate, Quarter-Turn Ball Valve Ball Valve/Gate Valve, Reduced Pressure Zone Backflow, Full Port, Media: Water, Cast Copper Silicon Alloy Body, 10-3/4 in L Dimensions, Domestic
- Top entry all internals immediately accessible
- Single access cover and modular check construction for easy of maintenance
- Compact space saving design
- Replaceable seats for economical repair
- Test cocks are screwdriver slotted
- Cast copper silicon alloy body construction for durability
- Large body passages provides low pressure drop
- Captured spring assemblies for safety
- Quarter-turn full port resilient seated ball valve shutoffs
- Internal relief valve for reduced installation clearances
- Standard/Approvals: USC Certified | PROP65: This product can expose you to chemicals including lead which is known to the State of California to cause cancer and birth defects or other reproductive harm.
- INCLUDES: (4) Resilient Seated Test Cocks and Air Gap Drain Fitting
- WARRANTY: 1 Year Limited
WATTS®, 0391003, Reduced Pressure Zone Assembly, Inline, Series: LF009, 3/4 in Nominal, NPT End Style, 175 psi Pressure, 33 to 180 deg F, 7.5 fps Flow Rate, Quarter-Turn Ball Valve Ball Valve/Gate Valve, Reduced Pressure Zone Backflow, Full Port, Media: Water, Cast Copper Silicon Alloy Body, 10-3/4 in L Dimensions, Domestic
Series LF009 Reduced Pressure Zone Assemblies are designed to protect potable water supplies in accordance with national plumbing codes and water authority requirements. This series can be used in a variety of installations, including the prevention of health hazard cross connections in piping systems or for containment at the service line entrance. The LF009 features Lead Free construction to comply with Lead Free installation requirements. This series features two in-line, independent check valves, captured springs and replaceable check seats with an intermediate relief valve. Its compact modular design facilitates easy maintenance and assembly access.
- Brand: WATTS®Ball Valve/Gate Valve type: Quarter-Turn Ball ValveBody Material: Cast Copper Silicon AlloyDimensions: 10-3/4 in LDomestic/Import: DomesticEnd Style: NPTNominal Size: 3/4Port Type: FullPressure Rating: 175Series: LF009M3-QTTemperature Rating: 33 to 180
