Mueller Co

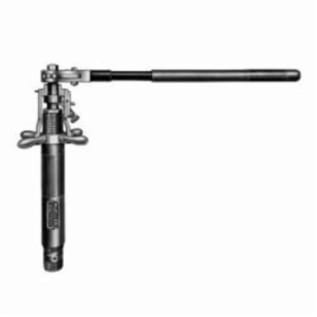

Mueller Co 39305 Drilling and Stopping Machine, 3/4 - 2 in Pipe
Mueller Co, 39305, Drilling and Stopping Machine, 3/4 - 2 in Pipe, Fluorocarbon/Steel
Documents
- H-604 air power operator
- Used to install up to 4 in tees, Save-A-Valve® drilling nipples and line stopper fittings
- Has boring bar locking mechanism for safe, positive operation
- Test plug feature allows for stack pressurization
- 14 in (356 mm) boring bar travel
- 500 psig (3447 kPa) maximum working pressure at 100 deg F (38 deg C)
- Note: The working pressure or temperature rating is reduced accordingly if any attachment, valve or fitting subjected to pressure or temperature during the drilling operation has a maximum working pressure or temperature rating less than that specified above
- Equipment furnished with each D-5 machine: Metal Storage Chest (580969), Reversible Ratchet Handle (85308), Body Gasket (33278), Adjustable Wrench (91664), Double open end Wrench (58196), Cutting Grease (88366), Operating instruction Manual (Form 9335)
- WARRANTY: Limited
Mueller Co, 39305, Drilling and Stopping Machine, 3/4 - 2 in Pipe, Fluorocarbon/Steel
- Brand:Â Mueller Co
