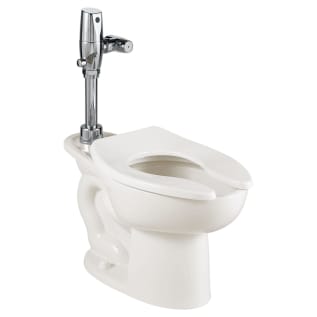

American Standard 2234528.020 High Efficiency Toilet, Madera, Elongated Bowl, 16-1/2 in H Rim, 10 in Rough-In, 1.28 gpf, White, Domestic
American Standard, 2234528.020, Toilet, High Efficiency, Madera Collection, 1.28 gpf Flush, Elongated Bowl, 16-1/2 in Rim Height, 10 in Rough-In, 2-1/8 in Trapway, Floor Mounting, 1-1/2 in Inlet Spud, Selectronic® Battery-Powered Flushing System, 14 in W x 28-1/4 in D x 33 in H Overall, Vitreous China, White, Domestic
Documents
- Floor mount elongated flushometer valve toilet
- High efficiency, operates in the range of 1.1 gpf to 1.6 gpf (4.2 to 6 Lpf)
- Conventional, fully-glazed 2-1/8 in trapway
- Condensation channel
- 16-1/2 in H rim for accessible applications
- Powerful direct-fed siphon jet action
- 1000 g of miso at 1.28 gpf
- Factory installed CR-P2 lithium battery
- Self-cleaning piston with integral wiper spring significantly reduces clogging and maintenance
- Selectronic® proximity system with universal sensor provides hygienic, hands-free operation
- State-of-the-Art electronics prevent ghost flushing
- Dezincification-resistant semi-red brass alloy
- Fully mechanical manual override button can flush the valve without power
- Fail-safe - valve automatically closes upon loss of power or water pressure and does not need to be reset
- Adjustable sanitary flush cleans the fixture and maintains the trap seal
- Chemical-resistant EPDM seals for long life
- Can be installed left or right hand
- 25 to 80 psi operating pressure
- 25 gpm flow requirement
- Standard/Approvals: ADA Compliant|ANSI/ASME A112.19.2|ASME A112.19.2-2008|CSA B45.1-08|ASSE 1037|Water-Efficient Certified
- INCLUDES: 047007-0070A Inlet Spud (Furnished with Bowl), (2) 481310-100 Bolt Caps with Retainers (Furnished with Bowl), 1 in IPS Angle Stop with Back Flow Protection and Vandal-Resistant Cap, 1 in Sweat Solder, Cover Tube, Wall Flange, 1-1/2 in High Back Pressure Vacuum Breaker, Spud Coupling and Flange
American Standard, 2234528.020, Toilet, High Efficiency, Madera Collection, 1.28 gpf Flush, Elongated Bowl, 16-1/2 in Rim Height, 10 in Rough-In, 2-1/8 in Trapway, Floor Mounting, 1-1/2 in Inlet Spud, Selectronic® Battery-Powered Flushing System, 14 in W x 28-1/4 in D x 33 in H Overall, Vitreous China, White, Domestic
If you're looking for a winning flush, here it is. Delivering optimal performance while conserving water, the Madera™ toilet new design can keep itself and the floor cleaner. Take your pick from a variety of toilets, from elongated with comfort and shape to height with the EverClean® surface cleaner.
- Brand: American Standard BrandsBowl Shape: ElongatedCollection: Madera™ FloWise®Domestic/Import: DomesticFinish/Color: WhiteFlush Rate: 1.28Flushing System: Selectronic® Battery-PoweredInlet Spud Size: 1-1/2Material: Vitreous ChinaMounting Type: FloorOverall Dimensions: 14 in W x 28-1/4 in D x 33 in HRim Height: 16-1/2Rough-In Size: 10Trapway Size: 2-1/8Type: High Efficiency
American Standard 2234528.020 High Efficiency Toilet, Madera, Elongated Bowl, 16-1/2 in H Rim, 10 in Rough-In, 1.28 gpf, White, Domestic
American Standard, 2234528.020, Toilet, High Efficiency, Madera Collection, 1.28 gpf Flush, Elongated Bowl, 16-1/2 in Rim Height, 10 in Rough-In, 2-1/8 in Trapway, Floor Mounting, 1-1/2 in Inlet Spud, Selectronic® Battery-Powered Flushing System, 14 in W x 28-1/4 in D x 33 in H Overall, Vitreous China, White, Domestic
