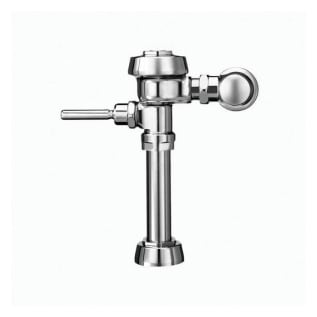

Sloan® Royal® 3010000 ROYAL 111 Flushometer, 1.6 gpf, Polished Chrome, Domestic

11783 MFG #: 3010000
$395.63 / ea
Sloan® Royal® 3010000 ROYAL 111 Flushometer, 1.6 gpf, Polished Chrome, Domestic
  • Connection Location: Top Spud
  • Domestic/Import: Domestic
  • Finish/Color: Polished Chrome
  • Fixture Type: Water Closet
  • Flush Rate: 1.6
  • Inlet Size: 1 in IPS
  • Material: Semi-Red Brass
  • Rough-In Size: 11-1/2
  • Series: 111
  • Spud Coupling: 1-1/2
  • Type: Single-Flush
  • Valve Design: Diaphragm
  • Handle Type: Non-Hold Open Oscillating

Sloan® Royal® Flushometer, Series: ROYAL 111, Water Closet Fixture, 1.6 gpf Flush, Diaphragm, Connection Location: Top Spud, Non-Hold Open Handle, Semi-Red Brass, Polished Chrome, Domestic

Exposed Water Closet Flushometer, for floor mounted or wall hung top spud bowls.

QTY
Add to List
  • Features
  • Permex® synthetic rubber diaphragm with dual filtered fixed bypass
  • ADA compliant metal oscillating non-hold-open handle with triple seal handle packing
  • 1 in IPS screwdriver Bak-Chek® angle stop with free spinning vandal resistant stop cap
  • Adjustable tailpiece
  • High back pressure vacuum breaker flush connection with one piece bottom hex coupling nut
  • Spud coupling and flange for 1-1/2 in top spud
  • Sweat solder adapter with cover tube and cast wall flange with set screw
  • High copper, low zinc brass castings for dezincification resistance
  • Non-hold open handle, fixed metering bypass and no external volume adjustment to ensure water conservation
  • Flush accuracy controlled by CID technology
  • Diaphragm, handle packing, stop seat and vacuum breaker molded from Permex® rubber compound for chloramine resistance
  • Manual activation
  • Wall, floor fixture mount
  • Standard/Approvals: ADA Compliant, ANSI/ASME A112.19.2, ASSE 1037, ASTM, BAA Compliant, cUPC Listed
  • WARRANTY: 3 Years Limited
