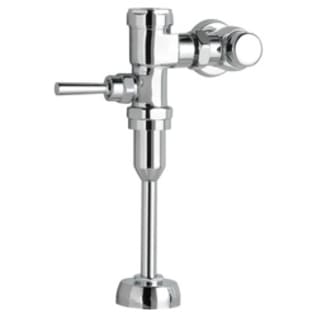

American Standard 6045101.002 FloWise® Manual Exposed Urinal Flush Valve, 1 gpf, 3/4 in Inlet, 3/4 in Spud, 20 to 80 psi, Polished Chrome, Import

1047024 MFG #: 6045101.002
$265.00 / ea
American Standard 6045101.002 FloWise® Manual Exposed Urinal Flush Valve, 1 gpf, 3/4 in Inlet, 3/4 in Spud, 20 to 80 psi, Polished Chrome, Import
  • Collection: Flowise®
  • Domestic/Import: Import
  • Finish/Color: Polished Chrome
  • Flush Rate: 0.125
  • Inlet Size: 3/4
  • Material: Cast Brass
  • Pressure Rating: 20 to 80
  • Rough-In Size: 11-1/2
  • Spud Coupling: 3/4
  • Type: Manual
  • Handle Type: Non-Hold Open

American Standard Exposed Urinal Flush Valve, Manual, FloWise®, 1 gpf Flush, 3/4 in Inlet, 3/4 in Spud Coupling, 11-1/2 in Rough-In, 20 to 80 psi, Non-Hold Open Handle, Brass, Polished Chrome, Import

An impressive collection of electronic and manual valves designed to meet the demands of high-use spaces. Labor-saving installation, water-saving operation and time-saving maintenance and care.

QTY
Add to List
  • Features
  • Self-cleaning brass piston with integral wiper spring prevents clogging and reduces maintenance
  • Piston operation delivers superior flush accuracy and repeatability
  • Piston valve remains closed and does not need to be reset after loss of water pressure
  • Positive seal ensures leak-free performance
  • No external volume adjustment
  • Durable chrome plated cast brass construction is ideal for commercial applications
  • Chloramine-resistant EPDM seals
  • Adjustable tailpiece for rough-in flexibility
  • Top spud placement
  • Manual urinal flush valve shall feature self-cleaning brass piston valve with integral wiper spring in bypass orifice to prevent clogging
  • Valve remains closed and does not need to be reset after loss of water pressure
  • Includes cast brass valve body and cover with chrome finish and Vandal-resistant stop cap
  • Includes sweat solder kit with wall flange and cover tube
  • Angle stop with back-flow protection and vacuum breaker included
  • 10 gpm flow requirement
  • Cast wall flanges (3/4 in) accessory
  • Non-hold open handle
  • Standard/Approvals: ASSE 1037, ANSI/ASME A112.19.2, ADA Compliant
  • INCLUDES: 3/4 in IPS Angle Stop with Back-Flow Prevention and Vandal-Resistant Cap, Sweat Solder Kit Including Cover Tube and Wall Flange, High Back Pressure Vacuum Breaker with Down Tube, Spud Coupling and Flange for 3/4 in Top Spud
