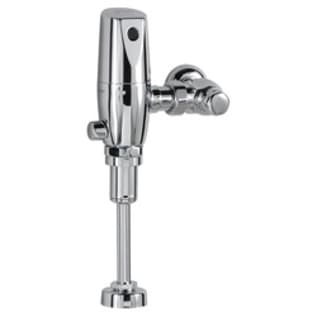

American Standard 6063101.002 Selectronic® Exposed Urinal Flush Valve, CR-P2 Lithium Battery, 1 gpf, 3/4 in Inlet, 3/4 in Spud, 20 to 80 psi, Import

963276 MFG #: 6063101.002
$582.00 / ea
American Standard 6063101.002 Selectronic® Exposed Urinal Flush Valve, CR-P2 Lithium Battery, 1 gpf, 3/4 in Inlet, 3/4 in Spud, 20 to 80 psi, Import
  • Collection: Selectronic®
  • Domestic/Import: Import
  • Fixture Type: Urinal
  • Flush Rate: 0.5
  • Inlet Size: 3/4
  • Material: Semi-Red Brass
  • Pressure Rating: 20 psi Flowing/80 psi Static
  • Spud Coupling: 3/4
  • Type: Base Model Exposed
  • Valve Design: Piston Operated

American Standard Exposed Urinal Flush Valve, Selectronic®, CR-P2 Lithium Battery, 1 gpf Flush, 3/4 in Inlet, 3/4 in Spud Coupling, 11-1/2 in Rough-In, 20 to 80 psi, Brass, Import

An impressive collection of electronic and manual valves designed to meet the demands of high-use spaces. Labor-saving installation, water-saving operation and time-saving maintenance and care.

QTY
Add to List
  • Features
  • Exclusive pressure compensation feature allows the flush valve to deliver a constant flush volume regardless of water pressure
  • Flush valve can not be adjusted to deliver more or less water, ensuring water savings and performance
  • Electronic flush valve with Selectronic® proximity system for "hands free" operation
  • Self-cleaning piston helps prevent clogging and reduces maintenance
  • Positive seal ensures leak-free performance
  • Stadium flush: valve delivers short flush every 2 min during periods of high use
  • Fully mechanical manual override: allows valve to flush during a power failure
  • Fail safe operation-valve automatically closes on loss of power or water pressure
  • Sanitary flush valve automatically flushes after 24 hours of non-use to maintain trap seal
  • State-of-the-Art electronics are immune to outside light
  • Watertight design ensures dependable performance
  • Range can be adjusted without tools (manually or by remote control
  • Can be installed left or right hand
  • Electronic, sensor activated urinal flush valve shall feature self-cleaning piston valve with integral wiper spring in refill orifice to prevent clogging
  • Includes a factory-installed CR-P2 lithium battery and fully mechanical manual override that can flush the valve without power
  • Sweat solder kit and high back pressure vacuum breaker also included
  • Hygienic, touch-free operation
  • Flexible Selectronic® platform with programmable sensor
  • Standard/Approvals: ASSE 1037, ANSI/ASME A112.19.2, ADA Compliant
  • INCLUDES: Inlet Includes 3/4 in Sweat Solder Kit and Angle Stop with Back-Flow Protection and Vandal-Resistant Cap and Outlet Includes 3/4 in High Back Pressure Vacuum Breaker with Spud Coupling and Flange
