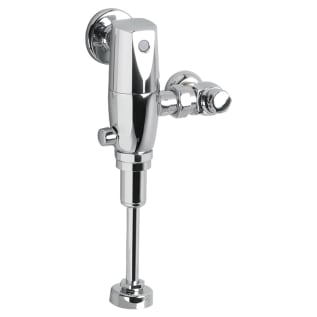

American Standard 606B101.002 Selectronic® Exposed Hands-Free Operated Flush Valve, Plug-In AC Powered, 0.5 gpf Flush Rate, 3/4 in NPT Inlet, 3/4 in Spud, 25 psi Flowing/80 psi Static Pressure, Rough Brass, Import
American Standard Flush Valve, Exposed Hands-Free Operated, Selectronic® Collection, Urinal Fixture, Plug-In AC Powered Power Source, 0.5 gpf Flush, 3/4 in NPT Inlet, 3/4 in Spud Coupling, Piston Operated Valve Design, Connection Location: Top Spud, 400 to 800 mm Sensor, 25 psi Flowing/80 psi Static Pressure, Semi-Red Brass Alloy, Rough Brass, Import
Documents
- Exclusive pressure compensation feature eliminates the need for the installer to adjust the stop valves, saving time and money and ensuring water savings
- Self-cleaning piston eliminates routine maintenance
- No diaphragms to replace or filter screens to clean
- Integral wiper spring cleans the refill orifice with every flush
- Delivers reliable operation even with poor water quality
- Hygienic, touch-free operation
- Flexible Selectronic® platform with programmable sensor
- Fully mechanical manual override - allows valve to flush during a power failure
- Fail-safe - valve automatically closes on loss of power or water pressure
- Power kit sold separately
- Can be installed left or right hand
- Touch-free operation helps keep the restroom clean and hygienic
- An impressive collection of Selectronic® sensor operated flush valves are designed to meet the demands of high use spaces labor saving installation, water saving operation and time saving maintenance and care
- Pressure compensation feature ensures accurate flush volume regardless of inlet water pressure
- No routine maintenance required, no diaphragm to change, no filter screen to clean
- State-of-the-Art electronics prevent ghost flushing
- Dezincification-resistant semi-red brass alloy
- Adjustable sanitary flush cleans the fixture and maintains the trap seal
- Stadium feature - valve automatically switches to water savings mode during periods of heavy usage
- Chemical-resistant EPDM seals for long life
- Standard/Approvals: ADA Compliant|ANSI/ASME A112.19.2|ASSE 1037|EPA WaterSense® Certified
- INCLUDES: 3/4 in IPS Angle Stop with Back Flow Protection, Vandal Resistant Cap, Sweat Solder Kit, Cover Tube, Wall Flange and 3/4 in Vacuum Breaker, Spud Coupling and Flange
American Standard Flush Valve, Exposed Hands-Free Operated, Selectronic® Collection, Urinal Fixture, Plug-In AC Powered Power Source, 0.5 gpf Flush, 3/4 in NPT Inlet, 3/4 in Spud Coupling, Piston Operated Valve Design, Connection Location: Top Spud, 400 to 800 mm Sensor, 25 psi Flowing/80 psi Static Pressure, Semi-Red Brass Alloy, Rough Brass, Import
The Selectronic® exposed AC urinal flush valve features a self-cleaning piston design that saves time and money by eliminating routine maintenance and preventing the valve from running due to clogs. The Selectronic® urinal flush valves include a pressure compensation feature that maintains the proper flush volume regardless of inlet water pressure.
- Brand: American Standard BrandsCollection: Selectronic®Connection Location: Top SpudDomestic/Import: ImportFinish/Color: Rough BrassFixture Type: UrinalFlush Rate: 0.5Inlet Size: 3/4 in NPTMaterial: Semi-Red Brass AlloyPower Source: Plug-In AC PoweredPressure Rating: 25 psi Flowing/80 psi StaticSensor Range: 400 to 800Spud Coupling: 3/4Type: Exposed Hands-Free OperatedValve Design: Piston Operated
American Standard 606B101.002 Selectronic® Exposed Hands-Free Operated Flush Valve, Plug-In AC Powered, 0.5 gpf Flush Rate, 3/4 in NPT Inlet, 3/4 in Spud, 25 psi Flowing/80 psi Static Pressure, Rough Brass, Import
American Standard Flush Valve, Exposed Hands-Free Operated, Selectronic® Collection, Urinal Fixture, Plug-In AC Powered Power Source, 0.5 gpf Flush, 3/4 in NPT Inlet, 3/4 in Spud Coupling, Piston Operated Valve Design, Connection Location: Top Spud, 400 to 800 mm Sensor, 25 psi Flowing/80 psi Static Pressure, Semi-Red Brass Alloy, Rough Brass, Import
