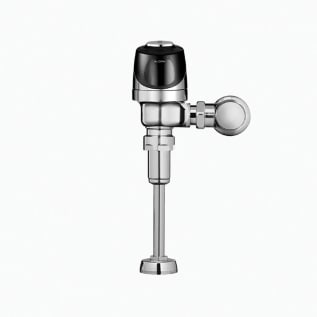

Sloan® ECOS® 3250325 ECOS 8186 Single Flush Sensor Exposed Flushometer, Battery, 0.125 gpf, 3/4 in IPS Inlet, 3/4 in Spud, Polished Chrome, Domestic

1108541 MFG #: 3250325
$1,209.00 / ea
Sloan® ECOS® 3250325 ECOS 8186 Single Flush Sensor Exposed Flushometer, Battery, 0.125 gpf, 3/4 in IPS Inlet, 3/4 in Spud, Polished Chrome, Domestic
  • Connection Location: Top Spud
  • Domestic/Import: Domestic
  • Finish/Color: Polished Chrome
  • Fixture Type: Urinal
  • Flush Rate: 0.125
  • Inlet Size: 3/4 in IPS
  • Material: Semi-Red Brass
  • Power Source: Battery
  • Pressure Rating: 15 to 80
  • Rough-In Size: 11-1/2
  • Sensor Range: 15 to 30
  • Series: 8186
  • Spud Coupling: 3/4
  • Type: Single-Flush
  • Valve Design: Diaphragm

Sloan® ECOS® Sensor Exposed Flushometer, Single Flush, Series: ECOS 8186, Urinal Fixture, Battery, 0.125 gpf Flush, 3/4 in IPS Inlet, 3/4 in Spud Coupling, 11-1/2 in Rough-In, Diaphragm, Connection Location: Top Spud, 15 to 30 in Sensor, Semi-Red Brass, Polished Chrome, Domestic

Exposed, battery-powered, sensor-activated Sloan ECOS® electronic urinal flushometer with Smart Sense Technology™.

QTY
Add to List
  • Features
  • Flex tube diaphragm designed for improved life and reduced maintenance
  • Synthetic rubber seals for chloramine resistance
  • Initial Set-up Range Indicator Light (first 10 minutes)
  • Low battery flashing LED
  • Sweat solder adapter with cover tube and cast wall flange with set screw
  • Spud coupling and flange for 3/4 in top spud
  • Stop seat and vacuum breaker molded from PERMEX® rubber compound for chloramine resistance
  • 3/4 in IPS screwdriver Bak-Chek® angle stop with Free spinning, vandal resistant stop cap
  • Infrared sensor with multiple-focused, lobular sensing fields for high and low target detection
  • Latching solenoid operator
  • Fixed metering by-pass and no external volume adjustment to ensure water conservation
  • Engineered metal cover with replaceable lens window
  • (4) size AA alkaline batteries included: Duracell® with DURALOCK power preserve Technology™ guaranteed for up to 10 years in storage
  • Courtesy Flush® override button (optional)
  • Reduces water usage up to 80 percent over standard sensor urinal
  • ADA compliant Sloan ECOS® battery powered Infrared sensor for automatic "No Hands" operation
  • Override button
  • Top sensor position
  • ECOS 8186-0.125 OR
  • Standard/Approvals: ADA Compliant, BAA Compliant, cUPC Certified, cUPC Green Certified, Satisfies LEED Credits, WaterSense Listed
  • INCLUDES: (4) Size AA Alkaline Batteries
  • WARRANTY: 3 Years Limited
