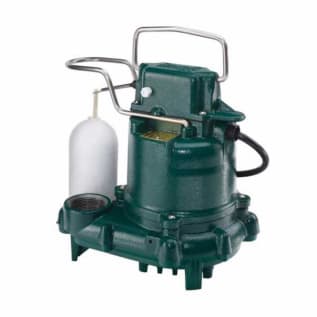

Zoeller® 53-0016 Mighty-Mate 50 Single Seal Automatic Submersible Pump, 43 gpm Flow Rate, 1-1/2 in NPT Outlet, 1 ph, 3/10 hp, Cast Iron
Zoeller® Submersible Pump, Single Seal Automatic, Series: Mighty-Mate 50, 43 gpm, 1-1/2 in NPT Outlet, 19-1/4 ft Maximum Head, 3/10 hp, 115 VAC, 9.7 A, 60 Hz Frequency, 1 ph ph, 1550 rpm Motor, 3-Wire Cord, Non-Clogging Vortex Impeller, 130 deg F, Sleeve Bearing, Cast Iron, 10-3/32 in W x 10-1/16 in H Dimensions
Documents
- Float-operated, submersible, 2-pole mechanical switch and variable level, long-cycle systems
- Corrosion-resistant, powder coated epoxy finish
- No steel sheet metal parts to rust or corrode
- Stainless steel screws, guard, handle and switch arm
- No screens to clog
- Watertight neoprene square ring between motor and pump housing
- Solid, buoyant, polypropylene float
- oil filled, hermetically-sealed, automatic reset thermal overload protected motor
- Upper and lower sleeve bearings running in bath of oil
- Entire unit pressure-tested after assembly
- Carbon and ceramic shaft seal
- Passes 1/2 in spherical solids
- Watertight and dust-tight
- Permanently oiled bearings
- 7-1/4 in on point, 3 in off point
- Cast iron switch case, motor and pump housing
- Engineered thermoplastic base
- Engineered, glass-filled, plastic impeller with metal insert
- Stainless steel guard and handle
- Lower and upper bearings, oil-fed cast iron
- Standard/Approvals: CSA Certified|SSPMA Standard|UL Listed
Zoeller® Submersible Pump, Single Seal Automatic, Series: Mighty-Mate 50, 43 gpm, 1-1/2 in NPT Outlet, 19-1/4 ft Maximum Head, 3/10 hp, 115 VAC, 9.7 A, 60 Hz Frequency, 1 ph ph, 1550 rpm Motor, 3-Wire Cord, Non-Clogging Vortex Impeller, 130 deg F, Sleeve Bearing, Cast Iron, 10-3/32 in W x 10-1/16 in H Dimensions
Considered one of America's most popular sump pumps. This robust family of sump pumps is known for reliability, durability and performance. The preset, integral snap-action float switch is engineered for one million mechanical starts. The heat-dissipating cast iron body with epoxy powder coated finish provides maximum pumping performance under the most extreme conditions. With Zoeller® cool run design, the hermetically sealed, oil-filled motor and non-clogging vortex impeller add up to a long-lasting, trouble-free product.
- Brand: Zoeller®Amperage Rating: 9.7Bearing Type: SleeveCord Type: 3-WireDimensions: 10-3/32 in W x 10-1/16 in HFlow Rate: 43Frequency Rating: 60Horsepower: 3/10Impeller Type: Non-Clogging VortexMaterial: Cast IronMaximum Head: 19-1/4Motor Speed: 1550Outlet Size: 1-1/2 in NPTSeries: Mighty-Mate 50Temperature Rating: 130Type: Single Seal AutomaticVoltage Rating: 115Phase: 1
