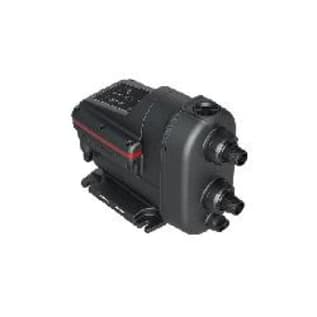

Grundfos 98562817 SCALA Pressure Booster Pump, 13.2 gpm Flow Rate, 1 in NPT Inlet x 1 in NPT Outlet, 208 to 230 VAC, 1 ph
Grundfos Pressure Booster Pump, Series: SCALA, 13.2 gpm, 1 in NPT Inlet, 1 in NPT Outlet, 147.6 ft Maximum Head, 0.7 hp, 208 to 230 VAC, 2.8 A, 60 Hz, 1 ph, 145 psi Maximum, NORYL FE1630PW PPE+PS-GS30 Impeller, 32 to 113 deg F Ambient, NEMA 3, NORYL FE1630PW PPE+PS-GS30

- Perfect water pressure
- Low noise
- Easy selection
- Easy installation
- Easy to operate
- Reliability, long lifetime
- Standard/Approvals: cULus NSF372|cULus DW NSF61
- INCLUDES: 84Z04004 Motor
- WARRANTY: 2 Years
Grundfos Pressure Booster Pump, Series: SCALA, 13.2 gpm, 1 in NPT Inlet, 1 in NPT Outlet, 147.6 ft Maximum Head, 0.7 hp, 208 to 230 VAC, 2.8 A, 60 Hz, 1 ph, 145 psi Maximum, NORYL FE1630PW PPE+PS-GS30 Impeller, 32 to 113 deg F Ambient, NEMA 3, NORYL FE1630PW PPE+PS-GS30
SCALA2 is a fully integrated water booster pump providing perfect water pressure in all taps at all times, even with multiple taps and showers running at the same time. It packs pump, motor, tank, sensor, drive and non-return valve into one compact unit. And with its intelligent pump control, SCALA2 automatically adjusts performance to both inlet pressure and water consumption in the home. Thanks to a water cooled motor, SCALA2 even offers one of the lowest noise levels of any booster on the market. SCALA2 features a built-in sensor, which constantly measures the discharge pressure. If the pressure drops below the desired level, SCALA2 boosts its operation immediately to compensate for the loss of pressure. We call it intelligent pump control and the result is perfect water pressure.
- Brand:Â GrundfosAmperage Rating:Â 2.8Flow Rate:Â 13.2Frequency Rating:Â 60Maximum Pressure:Â 145Power Rating:Â 0.7Voltage Rating:Â 208 to 230Enclosure Type:Â NEMA 3Impeller Type:Â NORYL FE1630PW PPE+PS-GS30Inlet Size:Â 1 in NPTMaterial:Â NORYL FE1630PW PPE+PS-GS30Maximum Head:Â 147.6Outlet Size:Â 1 in NPTPhase:Â 1Series:Â SCALATemperature Rating:Â 32 to 113 deg F Ambient

Grundfos 98562817 SCALA Pressure Booster Pump, 13.2 gpm Flow Rate, 1 in NPT Inlet x 1 in NPT Outlet, 208 to 230 VAC, 1 ph
Grundfos Pressure Booster Pump, Series: SCALA, 13.2 gpm, 1 in NPT Inlet, 1 in NPT Outlet, 147.6 ft Maximum Head, 0.7 hp, 208 to 230 VAC, 2.8 A, 60 Hz, 1 ph, 145 psi Maximum, NORYL FE1630PW PPE+PS-GS30 Impeller, 32 to 113 deg F Ambient, NEMA 3, NORYL FE1630PW PPE+PS-GS30
