Zoeller®

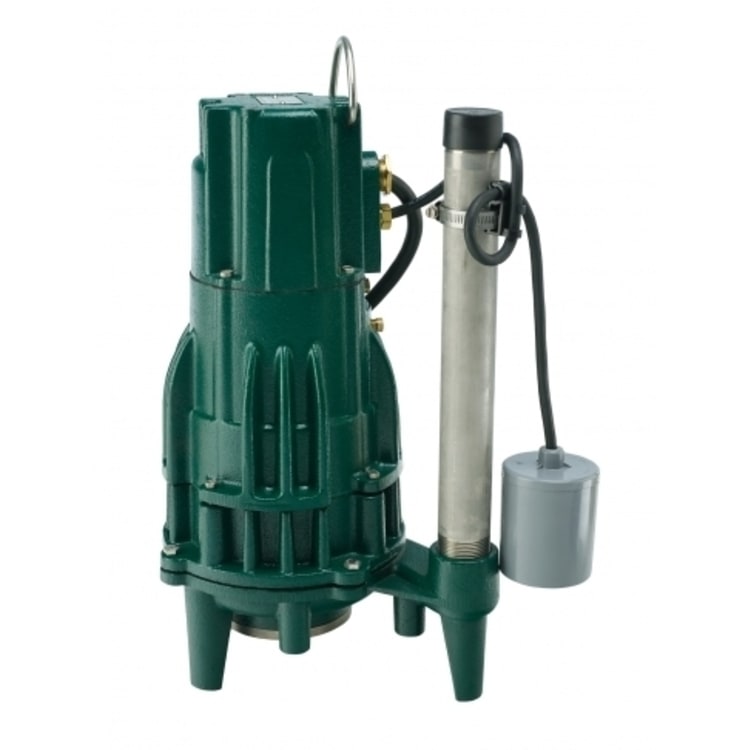

Zoeller® 820-0004 Shark 820 Series Commercial Grinder Pump, 46 gpm Max Flow, 107 ft Rated Head, Non-Automatic, 230 V, 1 Phase

990437 MFG #: 820-0004
$2,643.00 / ea

Zoeller®, 820-0004, Grinder Pump, Commercial, Series: Shark 820 Series, 46 gpm Maximum, 107 ft Rated Head, Automatic/Non Automatic: Non-Automatic, 1-1/4 in NPT Outlet, 2 hp, 230 V, 13.7 A, 60 Hz Frequency, 1 ph, 3450 rpm Motor, 20 ft Power Cord, Bronze Impeller, 130 deg F, Ball Bearing, Domestic

The Shark Series® Model EI820 Sewage Grinder Pump is designed to pump raw sewage in a sewage application. Solids are cut into a slurry using the industry proven "scissor like" Tri-Slice ® cutter technology. This includes a rotating cutter cutting against the stationary cutter plate reducing solids down to 1/8". The 200-230 Volt, 2 HP, Model 820 utilizes a vortex impeller. The EI820 should use a control panel and control switches allowing it to turn the pump on when called upon. The Model 820 is constructed with a cast iron body, enabling it to withstand the most demanding sewage ejector applications. The pump's identification tag, handle, and hardware are made of high-quality stainless steel preventing rust and corrosion. Everything about the pump is designed in a way that allows it to hold up in the toughest sewage conditions. Every pump is submerged in water and tested to its published performance curve, ensuring it meets your expectations and delivers peace of mind right out of the box.

QTY
  • Features
  • Durable heavy-duty, finned cast iron construction
  • Legs provided for free-standing installation
  • Oil-filled, hermetically sealed motor with Class B insulation, automatic reset thermal overload protected
  • Hardened stainless steel cutter and disc
  • Cutters protected from abrasive solids
  • Stainless steel lifting handle, screws and bolts
  • Easily adapts to rail systems
  • Mechanical shaft seal - carbon/ceramic
  • Control panels not required
  • Simplex grinder package systems (unassembled and job ready/assembled) available
  • Corrosion-resistant, powder coated epoxy finish
  • Stainless steel cutter plate/cutter
  • Standard/Approvals: cCDAus listed
  • WARRANTY: 3 Years
