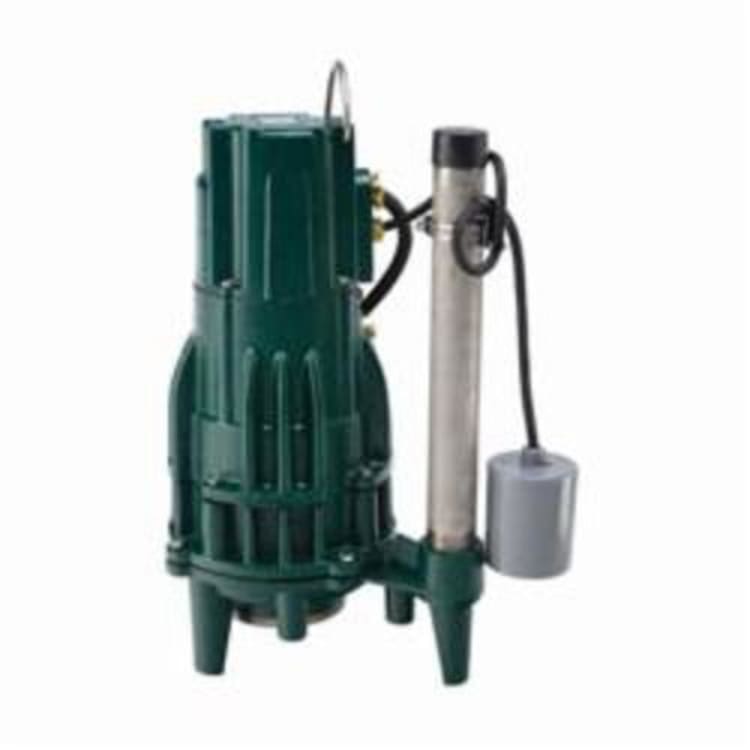

Zoeller® The Shark® 820-0011 1 or 3-Phase Single Directional Grinder Pump, 47 gpm Maximum, Automatic, 107 ft Maximum Head, 230 VAC

1124464 MFG #: 820-0011
$2,647.00 / ea
Zoeller® The Shark® 820-0011 1 or 3-Phase Single Directional Grinder Pump, 47 gpm Maximum, Automatic, 107 ft Maximum Head, 230 VAC
  • Amperage Rating: 13.7
  • Automatic/Non Automatic: Automatic
  • Cord Type: 20
  • Horsepower: 2
  • Material: Cast Iron
  • Maximum Flow Rate: 47
  • Maximum Head: 107
  • Outlet Size: 1-1/4 in NPT
  • Series: 820
  • Temperature Rating: 130
  • Type: Single Directional
  • Voltage Rating: 230
  • Phase: 1

Zoeller® The Shark® Grinder Pump, 1 or 3-Phase Single Directional, Series: 820, 47 gpm Maximum Flow Rate, Automatic Automatic/Non Automatic, 1-1/4 in NPT Outlet, 107 ft Maximum Head, 2 hp, 230 VAC, 13.7 A, 20 ft Cord, 130 deg F, Cast Iron

This series of submersible pumps is designed for use in residential or commercial wastewater applications and can be used to transfer wastewater or unscreened raw sewage. Each pump features an innovative cutting mechanism allowing it to grind solids into fine particles. The uniform consistency of the discharged material lessens the risk of clogs in the pipe, yielding less down time and fewer service calls. These durable cast iron pumps include a powder coated epoxy finish to prevent corrosion, and are designed to provide great heat dissipation from the motor. As with every Zoeller® pump, each one is 100% factory tested to ensure quality and reliability for years of trouble free performance.

QTY
Add to List
  • Features
  • Durable, heavy-duty, finned cast iron construction
  • Oil-filled, hermetically-sealed motor with Class B insulation, automatic reset thermal overload protected
  • Hardened stainless steel cutter and disc
  • Cutters protected from abrasive solids
  • Stainless steel lifting handle, screws and bolts
  • Easily adapts to rail systems
  • Mechanical shaft seal - carbon/ceramic
  • Control panels not required
  • Simplex grinder package systems (unassembled and job ready/assembled) available
  • Corrosion resistant, powder coated epoxy finish
  • 1-1/4 in NPT vertical discharge
  • Thermal overload protection
  • Engineered plastic impeller
  • Stainless steel cutter plate/cutter, shaft, hardware
  • Capacitor start/capacitor run motor type
  • Uniquely designed with integral control
  • Legs provided for free-standing installation
  • Upper and lower ball bearings running in bath of oil
  • Standard/Approvals: cCSAus Certified
