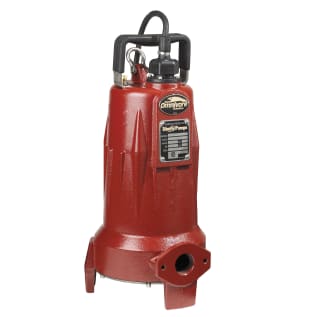

LIBERTY LSG202M 50 GPM 1-1/4" SIDE DISCHARGE PUMP 2HP 208/230V 1PH

1096274 MFG #: LSG202M
$2,509.00 / ea
LIBERTY LSG202M 50 GPM 1-1/4" SIDE DISCHARGE PUMP 2HP 208/230V 1PH
  • Amperage Rating: 15 A Full Load/53 A Locked Rotor
  • Automatic/Non Automatic: Non-Automatic
  • Bearing Type: Single Ball/Race Upper or Heavy Duty Ball/Race Lower
  • Cord Type: SJOOW 25 ft
  • Frequency Rating: 60
  • Horsepower: 2
  • Impeller Type: 300 Stainless Steel
  • Material: Fiberglass
  • Maximum Flow Rate: 50
  • Maximum Head: 110
  • Motor Speed: 3450
  • Outlet Size: 1-1/4 in FNPT
  • Rated Head: 10
  • Series: LSG200
  • Service Factor: 1
  • Temperature Rating: 221 deg F Thermal Overload
  • Type: 1-Stage
  • Voltage Rating: 208 to 230
  • Phase: 1

Liberty Pumps® Omnivore® Submersible Grinder Pump, 1-Phase 1-Stage, Series: LSG200, 50 gpm Maximum Flow Rate, 10 ft Rated Head, Automatic/Non Automatic: Non-Automatic, 1-1/4 in FNPT Outlet, 110 ft Maximum Head, 2 hp, 208/230 VAC, 15 FLA/53 A Locked Rotor, 60 Hz, 3450 rpm Motor, 25 ft SJOOW Cord, Service Factor: 1, 300 Stainless Steel Impeller, 221 deg F Thermal Overload, Single Ball/Race Upper or Heavy Duty Ball/Race Lower Bearing, Fiberglass Tank,

QTY
Add to List
  • Features
  • The Omnivore® by Liberty is the industry's newest 2 hp grinder pump with new V-Slice® Cutter Technology
  • This new innovation provides more cuts per revolution for superior shredding performance in demanding sewage applications
  • The hardened stainless steel cutting system provides in excess of 300000 cuts per minute and aggressively shreds jeans, shop rags, diapers, sanitary napkins and other difficult solids into a fine slurry
  • A unique open volute design eliminates the cutwater improving solids flow and reducing potential jamming of material in the volute
  • Quick-disconnect power cord, stainless steel impeller and dual shaft seals
  • Capacitors are integral to the pump, eliminating the need for an expensive control panel
  • Complete pre-assembled grinder system
  • Standard/Approvals: CSA Certified, SSPMA Certified, PROP65: This product can expose you to chemicals including lead, which are known to the State of California to cause cancer and birthdefects or other reproductive harm. For more information, go to www.P65Warnings.ca.gov.
