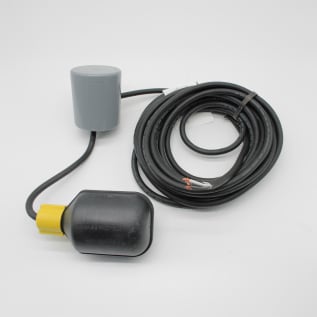

Zoeller® 10-1881 Variable Level Pump Switch, 115/230 V
Zoeller®, 10-1881, Pump Switch, Variable Level, 115/230 V, Normally Open Switch, PVC/Polypropylene Body

Documents
- Switches are rated for environments up to 140 deg F (60 deg C)
- Mounting Method: Adjustable weight
- Comes with a 2-year limited warranty giving you protection over your investment and the peace of mind you expect in a quality product
- For use with control panels and alarms in non-potable water applications
- Standard variable level switches rated for 115/230 V, 5 A
- Standard switches include 18/2 Type SJOW CPE cord
- Standard/Approvals: CSA Certified|UL Listed
- WARRANTY: 2 Years Limited
Zoeller®, 10-1881, Pump Switch, Variable Level, 115/230 V, Normally Open Switch, PVC/Polypropylene Body
Our narrow angle level control float are used to monitor liquid level conditions and activate control panels or alarms. This version includes a 25' cord and weight. They are typically installed in dose tanks, sump pump basins, holding tanks, lift stations, and other non-potable water applications. The variable level control switch is normally open when hanging vertically above the liquid level. The switch should be mounted to the weight that is provided, giving the switch a pivot point. When the water level rises and the switch is raised a few degrees above the horizontal position, the switch closes, completing the circuit to the control panel or alarm. The float that encases the mechanical switch is constructed of durable PVC/polypropylene.
- Brand: Zoeller®
