Bell & Gossett Check-Trol™ 101233LF Isolation Flow Control Flange, 1-1/4 in, 150 psi, 200 deg F, Steel

1255938 MFG #: 101233LF
$230.00 / ea
Bell & Gossett Check-Trol™ 101233LF Isolation Flow Control Flange, 1-1/4 in, 150 psi, 200 deg F, Steel
  • Dimensions: 4-7/16 in L
  • Material: Steel
  • Maximum Pressure: 150
  • Pipe Size: 1-1/4
  • Temperature Rating: 200
  • Type: Isolation
  • Finish: Polished Chrome

Bell & Gossett Check-Trol™ Flow Control Flange, Isolation, 1-1/4 in Pipe, 150 psi Maximum, 200 deg F, Steel, Polished Chrome, 4-7/16 in L Dimensions

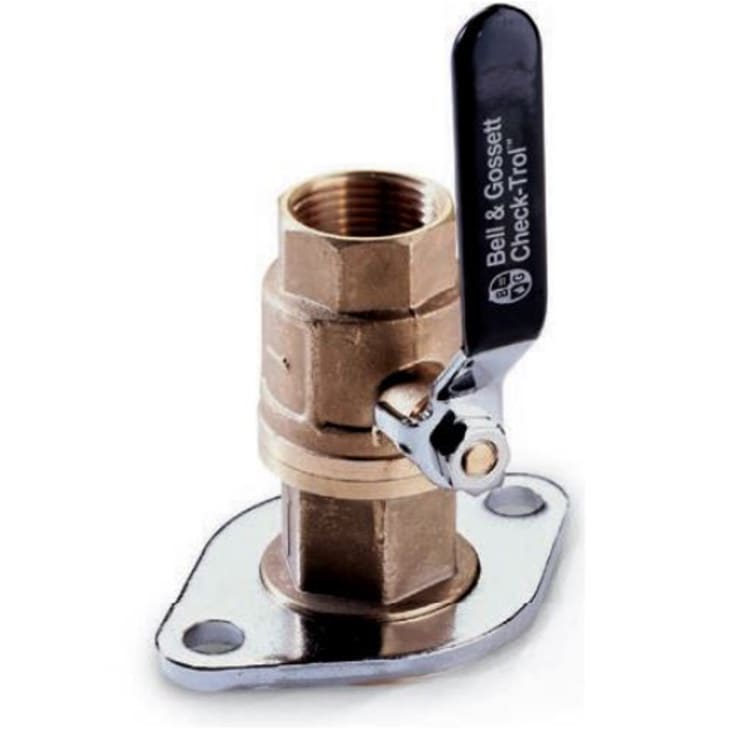

The Check-Trol flange is a combination isolation valve, flow control valve, and companion flange for circulators. The ball valve allows the circulator to be removed from the system without draining the system. The internal spring check prevents gravity circulation. Free floating companion flange makes pump installation a snap.

QTY
Add to List
  • Features
  • NPT x Flange connection
  • Lead free
  • Valve body is lead-free brass
  • Ball is chrome plated lead-free brass
  • Packing is PTFE
  • Seat ring is PTFE
  • Stem is lead-free brass
  • Spring check is nitrile, acetal, stainless steel
  • Product contains less than 0.25% lead content by weight on wetted surface
  • Use with following circulator: ecocirc auto and vario, ecocirc XL 20-35, 36-45, 55-45, NRF/NBF/SSF Wet Rotors, Series PL-30, PL-36, PL-55, Series 100, PR and LR
  • Standard/Approvals: CSA Certified|NSF/ANSI 372
