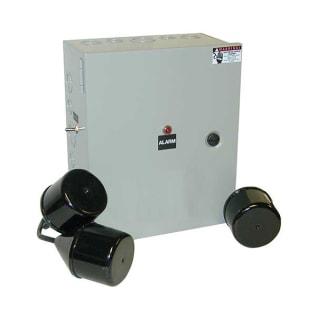

Zoeller® 10-0092 Duplex Alternator Electrical Control Panel, 115/200/230 VAC, 0 to 20 A, 12 in H x 10 in W x 6 in D, For Use With Single Phase Duplex Installation Pump

998172 MFG #: 10-0092
$2,400.00 / ea
Zoeller® 10-0092 Duplex Alternator Electrical Control Panel, 115/200/230 VAC, 0 to 20 A, 12 in H x 10 in W x 6 in D, For Use With Single Phase Duplex Installation Pump
  • Amperage Rating: 0 to 20
  • Specifications: 12 in H x 10 in W x 6 in D
  • Suitable For Use With: Duplex Installation Pump
  • Type: Duplex Alternator
  • Voltage Rating: 115/200/230
  • Phase: 1

Zoeller® Electrical Control Panel, Duplex Alternator, 115/200/230 VAC, 0 to 20 A, 12 in H x 10 in W x 6 in D, For Use With: Single Phase Duplex Installation Pump

An Electrical Alternator is used on a duplex pump application where automatic electrical cycling of the pump is desired for added protection in residential or commercial applications. With one pump operating to handle normal flow, a second pump becomes operational in the event the water level continues to rise. The built-in alarm system, a standard feature, can be connected to sound when the second pump becomes operational (3-float switch system) or independently (4-float switch system). All electrical systems must be installed by a qualified electrician and according to the National Electrical Code (see section 430-71 through 430-113, plus any others that apply).

QTY
Add to List
  • Features
  • Hand-off-auto toggle switch for each pump
  • Green pump run pilot light for each pump
  • Alarm test and silence switches
  • Red pilot light (NEMA 1 only) and audible alarm with 83 to 85 decibel rating for a high water condition
  • Red alarm beacon included with NEMA 4X enclosure
  • Auxiliary dry contact
  • High water alarm
  • On single phase - circuit breaker for each pump
  • Branch circuit protection provided by installing electrician
  • Magnetic starter for each pump
  • Alternating mechanism
  • Numbered terminal strip for connecting pumps and variable level float switches
  • NEMA 1, general purpose, watertight enclosures available
  • Integral auxiliary terminal board connections (dry contact) for remote alarm devices
  • 3 or 4 variable level float switch control operation
  • Three 20 ft (6 m) float switches included with 1 Ph panels
  • The use of off-the-shelf components provide for relatively easy field maintenance and repair
  • Float switches not included with three phase panels
  • Standard/Approvals: cULus Listed
