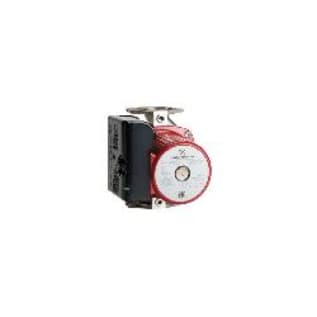

Grundfos 95906632 UPS Circulator Pump, 52 gpm Flow Rate, 115 VAC, 1 ph

1257971 MFG #: 95906632
$1,157.00 / ea
Grundfos 95906632 UPS Circulator Pump, 52 gpm Flow Rate, 115 VAC, 1 ph
  • Amperage Rating: 2.5 to 3.5
  • Dimensions: 7-1/8 in W x 6-1/2 in H
  • Flow Rate: 52
  • Frequency Rating: 60
  • Maximum Head: 45.28
  • Maximum Pressure: 145
  • Power Rating: 370
  • Series: UPS
  • Temperature Rating: 104 deg F Ambient
  • Voltage Rating: 115
  • Phase: 1

Grundfos Circulator Pump, Series: UPS, 52 gpm, 45.28 ft Maximum Head, 370 W, 115 VAC, 2.5 to 3.5 A, 60 Hz, 1 ph, 145 psi Maximum, 104 deg F Ambient, 7-1/8 in W x 6-1/2 in H

The pump is of the canned rotor type, i.e. pump and motor form an integral unit without shaft seal and with only two gaskets for sealing. The bearings are lubricated by the pumped liquid.

QTY
Add to List
  • Features
  • Ceramic shaft and radial bearings
  • Carbon axial bearing
  • Stainless steel rotor can and bearing plate
  • Corrosion resistant impeller, composite, PES
  • Stainless steel pump housing
  • 1 ph motor, no additional motor protection is required
  • Standard/Approvals: CSA Certified|ETL Approved
