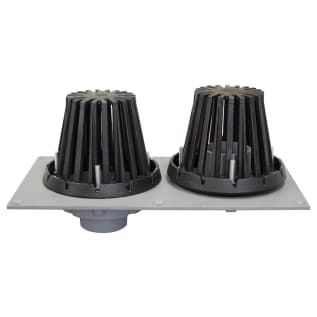

Sioux Chief 867-DI3 Light Commercial Combination Roof Drain and Overflow, 3 in, No Hub, Cast Iron, Domestic
Sioux Chief Combination Roof Drain and Overflow, Light Commercial, Series: 867, 3 in Outlet, No-Hub Connection, Cast Iron Drain, Domestic/Import: Domestic
Documents
- One-piece, cast iron base and mounting flange incorporates both the drain and overflow fixture
- Includes (2) enamel-coated cast iron clamping collars, (2) enamel-coated cast iron dome strainers and hardware
- 8-1/4 in W collar
- 5-3/4 in H dome
- 18-7/8 in L x 10-1/2 in W plate
- 31.8 sq-in strainer free area
- Standard/Approvals: ASME A112.6.4-2003
- INCLUDES: (2) Collar, (2) Dome Strainer and Hardware
Sioux Chief Combination Roof Drain and Overflow, Light Commercial, Series: 867, 3 in Outlet, No-Hub Connection, Cast Iron Drain, Domestic/Import: Domestic
Sioux Chief 867 Series cast iron roof drain and overflow fixture shall be used where necessary in drainage systems. Drain shall be have a one-piece, enamel coated cast iron body with separate, No-Hub connections for primary drain and overflow outlet. Cast iron clamping collar and dome strainer shall be included for both drain and overflow outlets. Drain shall be used in flat roof systems with waterproofing applied per standard installation practices. Designed in accordance with ASME A112.6.4-2003.
- Brand:Â Sioux ChiefConnection Type:Â No-HubDrain Material:Â Cast IronSeries:Â 867Type:Â Light CommercialDomestic/Import:Â DomesticOutlet Size:Â 3
