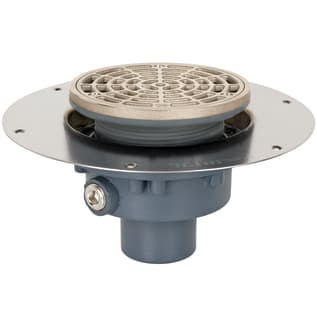

Sioux Chief Halo™ 822-2DNR Adjustable Floor Drain With Ring and Strainer, 2 in, Hub, 5-1/2 in, Ductile Iron Drain
Sioux Chief Halo™ Floor Drain, Adjustable, Series: 822, 2 in Outlet, Hub, Ductile Iron Drain, 5-1/2 in Grid, 4-3/8 in H
- No-hub connection
- Head adjusts up to 3/4 in above flush to accommodate most flooring types
- Installs easily in cored concrete floor or corrugated deck
- 18 ga 430 stainless deck flange
- Ductile iron head and base adaptor
- 9-1/2 in flange diameter
- Sch 40 hub connection
- 7.5 sq-in round strainer free area
- 1000 lb strainer load rating for nickel bronze (light duty pedestrian traffic)
- Nickel bronze round ring and strainer
- Standard/Approvals: ASME A112.6.3-01
Sioux Chief Halo™ Floor Drain, Adjustable, Series: 822, 2 in Outlet, Hub, Ductile Iron Drain, 5-1/2 in Grid, 4-3/8 in H
Sioux Chief 822 series adjustable floor drain shall be used where necessary in drainage systems. Floor drain shall have an 18 gauge stainless steel deck/mounting flange and an enamel-coated ductile iron body with no-hub connection. Floor drain shall allow adjustment of 3/4 in above the deck flange. Strainer shall be heel-proof and meet applicable load requirements for intended use. Trap primerport shall be threaded 1/2 in FIP and plugged for optional connection. Designed in accordance with ASME A112.6.3-2001.
- Brand: Sioux ChiefConnection Type: HubDimensions: 4-3/8 in HDrain Material: Ductile IronGrid Size: 5-1/2Series: 822Type: AdjustableOutlet Size: 2
