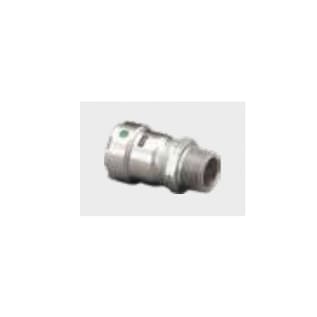

MegaPress® 90880 5111 Adapter, 1-1/4 in Nominal, Press x MNPT End Style, 316 Stainless Steel, Import
MegaPress® Adapter, Series: 5111, Fitting/Connector Type: Adapter, 1-1/4 in Nominal, Press x MNPT, 200 psi, 0 to 250 deg F, 316 Stainless Steel, 3.7 in L, Import
Documents
- 316 stainless carries an NSF 61 potable water rating
- Wide range of fitting configurations
- Eliminates threading and welding
- No fire watches, hot work permits or gas freeing necessary
- Makes secure press connections from 1/2 in to 4 in seconds
- Compatible with existing press tools
- Smart Connect® technology
- Standard/Approvals: ABS Approved|ANSI/CAN/UL 213|ASME B31/B31.1/B31.3/B31.9|ASTM A312/A554|Bureau Veritas Approved|CRN 23076.5 A/B/C|DNV-GL Approved|FM Class 1920|IAPMO CPC/NSPB/UMC/UPC/PS-117|ICC IMC/IPC/IRC|ICC-ES LC1002|Lloyd's Register Certified|NBCC Approved|NFPA 13/13D/13R|NPCC Approved|NSF/ANSI 61/372|PROP65: This product can expose you to chemicals including Chromium (hexavalent compounds), which is know to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
- INCLUDES: EPDM Sealing Element
- WARRANTY: Limited
MegaPress® Adapter, Series: 5111, Fitting/Connector Type: Adapter, 1-1/4 in Nominal, Press x MNPT, 200 psi, 0 to 250 deg F, 316 Stainless Steel, 3.7 in L, Import
MegaPress® fittings are designed to be used with standard IPS ASTM A312 stainless steel pipe and are ideal for industrial applications. MegaPress® 1/2 in to 2 in fittings can be used with SCH 5 to SCH 40/STD stainless steel pipe and 2-1/2 in to 4 in fittings can be used with SCH 10 to SCH 40/STD stainless steel pipe. A MegaPress® system can stand up to harsh environments while transporting process water, potable water, ammonia, low pressure steam or any number of other essential fluids or gases. MegaPress® fittings in sizes from 1/2 in to 4 in are offered in configurations including elbows, couplings, reducers, tees, reducing tees, threaded adapters, unions, caps and flanges.
- Brand: MegaPress®
