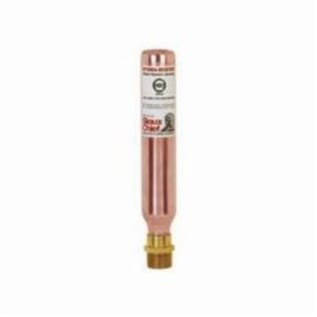

Sioux Chief HydraRester™ 653-B 650 Water Hammer Arrester, 3/4 in, MNPT, 350 psi, Domestic

731 MFG #: 653-B
$26.50 / ea
  • Body Material: Copper
  • Dimensions: 8-3/4 in L x 1-3/8 in W
  • Domestic/Import: Domestic
  • End Style: MNPT
  • Nominal Size: 3/4
  • Pressure Rating: 350
  • Series: 650
  • Softgoods Material: EPDM O-Ring
  • Temperature Rating: 250

Tomahawk HydraRester™ Water Hammer Arrester, Series: 650, 3/4 in Nominal, MNPT, 350 psi, 250 deg F, Copper Body, EPDM O-Ring, 8-3/4 x 1-3/8 in, Domestic

Sioux Chief 650 Series piston-type water hammer arresters shall be required in piping systems. Water hammer arresters shall have sufficient volume of air to dissipate the calculated kinetic energy generated in the piping system. Arresters shall be effective when installed at any angle. Arresters shall be approved for installation with no access panel required. Water hammer arresters shall be ANSI/ASSE 1010 2004 certified. Arresters shall be sized and placed per manufacturer's instructions.

  • Features
  • Videos
  • Lifetime cycle tested at U.s. testing laboratories to withstand 10,000 shock cycles
  • Factory tested to withstand 500,000 cycles without failure (654-C tested)
  • HydraRester™ male sweat fittings are compatible with press-fitting systems, such as Viega ProPress™ and all push-fitting systems
  • Allows for installation in 2 x 4 wall cavity
  • Installs at any angle
  • ASSE 1010 certified as a water hammer arrester that is "designed to provide continuous protection, without maintenance" allowing the HydraRester to be installed without access panels
  • 2900 psi burst tested
  • Standard/Approvals: ANSI/ASSE 1010 2004
