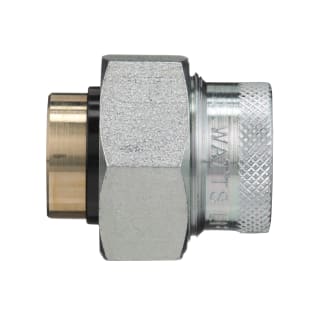

WATTS® 0009868 Dielectric Union, 1-1/2 in Nominal, FNPT x Solder End Style, Brass, Domestic
WATTS® Dielectric Union, 1-1/2 in Nominal, FNPT x Solder, 2-3/4 in Hex, 3 in Length, 250 psi, Brass, 180 deg F, Domestic
Documents
- Individually factory certified to withstand a minimum of 600 V on a dry line with no flashover
- Designed and manufactured to the highest quality standards
- Steel adapter and malleable iron nut
- Polysulfone insulator
- The wetted surface of this product contacted by consumable water contains less than 0.25% of lead by weight
- Maximum pressure is 250 psi (17.2 bar)
- Maximum temperature 180 deg F (82 deg C)
- FIP thread to solder connections
- Standard/Approvals: ARRA 2009|BAA 1933|PROP65: This product can expose you to chemicals including lead which is known to the State of California to cause cancer and birth defects or other reproductive harm.
- WARRANTY: 1 year Limited
WATTS® Dielectric Union, 1-1/2 in Nominal, FNPT x Solder, 2-3/4 in Hex, 3 in Length, 250 psi, Brass, 180 deg F, Domestic
Series LF3001A Lead Free Dielectric Unions are used in commercial and residential applications to prevent accelerated corrosion and deterioration in the piping system due to galvanic and stray current. It is installed between pipes made from dissimilar metals, and features a female iron pipe thread to solder connection. It consists of a union nut, two tailpieces, and a gasket that separates the tailpieces to prevent an electric current from occurring. Series LF3001A is ideal in applications such as hot water storage tanks, water and air conditioners, processing tanks, steam, gas, and water piping.
- Brand: WATTS®Domestic/Import: DomesticEnd Style: FNPT x SolderHex Size: 2-3/4Length: 3Material: BrassNominal Size: 1-1/2Pressure Rating: 250Series: LF3001ATemperature Rating: 180
