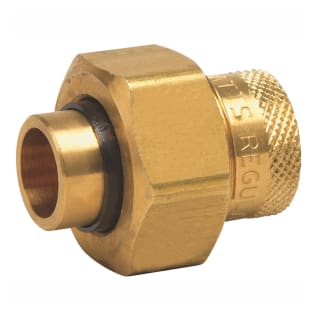

WATTS® 0009881 Dielectric Union, 3/4 in Nominal, Solder x FNPT End Style, Brass, Domestic
WATTS® Dielectric Union, 3/4 in Nominal, Solder x FNPT, 2-1/8 in Length, 250 psi, Brass, 180 deg F, 1-5/8 in W, Domestic
Documents
- Designed and manufactured to the highest quality standards
- Individually factory certified to withstand a minimum of 600 V on a dry line with no flashover
- Polysulfone insulator
- Maximum pressure is 250 psi (17.2 bar)
- Maximum temperature 180 deg F (82 deg C)
- Female brass pipe thread to female solder connections
- Standard/Approvals: PROP65: This product can expose you to chemicals including lead which is known to the State of California to cause cancer and birth defects or other reproductive harm.
- WARRANTY: 1 year Limited
WATTS® Dielectric Union, 3/4 in Nominal, Solder x FNPT, 2-1/8 in Length, 250 psi, Brass, 180 deg F, 1-5/8 in W, Domestic
Series LF3008 Lead Free Dielectric Unions are used in commercial and residential applications to prevent accelerated corrosion and deterioration in the piping system due to galvanic and stray current. It is installed between pipes made from dissimilar metals, and features a female brass pipe thread to female solder connection. It consists of a union nut, two tailpieces, and a gasket that separates the tailpieces to prevent an electric current from occurring. Series LF3008 is ideal in applications such as hot water storage tanks, water and air conditioners, processing tanks, steam, gas, and water piping.
- Brand: WATTS®Dimensions: 1-5/8 in WDomestic/Import: DomesticEnd Style: Solder x FNPTLength: 2-1/8Material: BrassNominal Size: 3/4Pressure Rating: 250Series: LF3008Temperature Rating: 180
