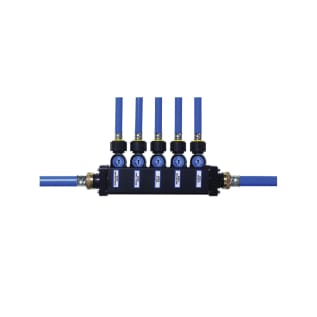

PureFlow® 50083 PEX (Crimp) Zoning Manifold, 1 x 1/2 in Nominal, Poly-Alloy, Domestic
PureFlow® Zoning Manifold, Series: PEX (Crimp), 1 x 1/2 in Nominal, 100 psi Pressure, Poly-Alloy, 180 deg F, Domestic
- Proven quality and non-corroding
- Reduced flow noise and excellent chlorine resistance
- Excellent chlorine resistance
- Compression port adapters
- Zoning manifold for combination systems
- Press connection
- Crimp connection
- Blue color coded ports for cold water
- Model V5031.5
- Standard/Approvals: ANSI 372|CSA B137.5|IAPMO Listed|ICC ES-PMG™ 1038|NSF 61-G|UL Listed
- INCLUDES: 1/4 Turn Valves, T-Handle Valve Key
- WARRANTY: Limited
PureFlow® Zoning Manifold, Series: PEX (Crimp), 1 x 1/2 in Nominal, 100 psi Pressure, Poly-Alloy, 180 deg F, Domestic
This specification designates requirements for the Viega MiniBloc™ for use in combinations installations supplying water to individual plumbing fixtures through dedicated ports and distribution lines. Each port (outlet) is equipped with a built-in 1/4 turn shut-Off valve to provide control for each fixture from a central location. The MiniBloc™ has separate hot and cold water inlets and ports to manage the entire plumbing system and are also available in single temperature flow through models. A variety of standard and Zero Lead fitting options are available for the MiniBloc distribution ports, including PEX Press Polymer, PEX Crimp PolyAlloy and PEX Compression. These distribution connections come complete with the MiniBloc when ordered. However, supply connections and fixture transition fittings are not included with the unit but are available separately.
- Brand: PureFlow®Domestic/Import: DomesticMaterial: Poly-AlloyNominal Size: 1 x 1/2Pressure Rating: 100Series: PEX (Crimp)Temperature Rating: 180
