A.Y. McDonald

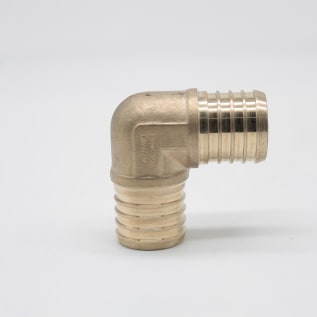

A.Y. McDonald 5423-056 72390 1 1/4 Elbow, 1-1/4 in Nominal, PEX End Style, Brass, Import
A.Y. McDonald Elbow, Fitting/Connector Type: 90 deg Elbow, 1-1/4 in Nominal, PEX, 160 psi, Forged, Brass, 73 deg F, 1-3/8 in OD
Documents
- 160 psi at 73 deg F, 100 psi at 180 deg F and 80 psi at 210 deg F
- Excellent resistance vibration
- All CNC machined ends
- The wetted surface of this product contacted by consumable water contains less than one quarter of one percent (0.25%) of lead by weight
- ASTM F876 specification for crosslinked polyethylene (PEX) tubing
- ASTM F877 specification for crosslinked polyethylene (PEX) plastic hot and cold-water distribution systems
- ASTM F1807 specification for metal insert fittings utilizing a copper crimp ring for SDR9 cross-linked polyethylene (PEX) tubing
- Standard/Approvals: ANSI B1.20.1|ANSI B16.18|ASTM F1807|ASTM F876/F877|NSF/ANSI 61-4/61-2012
- WARRANTY: Limited
A.Y. McDonald Elbow, Fitting/Connector Type: 90 deg Elbow, 1-1/4 in Nominal, PEX, 160 psi, Forged, Brass, 73 deg F, 1-3/8 in OD
- Brand:Â A.Y. McDonaldDimensions:Â 1-3/8 in ODEnd Style:Â PEXFitting/Connector Type:Â 90 deg ElbowMaterial:Â BrassMethod of Manufacture:Â ForgedNominal Size:Â 1-1/4Pressure Rating:Â 160Temperature Rating:Â 73
