Gruvlok®
Gruvlok® 0880004163 FIG 6084 Adapter, 6 in Nominal, Flanged End Style, 300 psi Pressure, 125/150 lb, Copper, Import
Gruvlok® Adapter, Series: FIG 6084, 6 in Nominal, Flanged, 4 in Length, 125/150 lb, 300 psi, Copper, Import
Documents
- The Gruvlok® Fig. 6084 Flange Adapter allows for direct connection of Class 125 or Class 150 flanged components to the CTS Copper System.┬á
- For use with 6-1/8 in copper tube
- Standard/Approvals: NSF/ANSI 61|UPC Listed
Gruvlok® Adapter, Series: FIG 6084, 6 in Nominal, Flanged, 4 in Length, 125/150 lb, 300 psi, Copper, Import

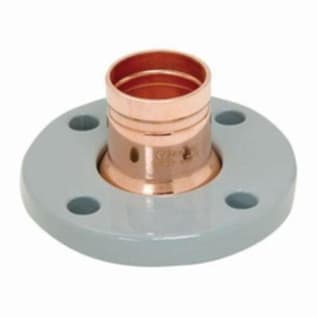

The Gruvlok® Fig. 6084 Flange Adapter allows for direct connection of Class 125 or Class 150 flanged components to the CTS Copper System. The CTS Copper Flange Adapter (Sizes 2 thru 6 in) conforms to ANSI class 125/150 bolt patterns and is rated at 300 PSIG (20.7 bar). The flange adaptor is a dielectric union, utilizing the epoxy coating as a suitable replacement for flange dialectic insulation kits.
- Brand: Gruvlok®Domestic/Import: ImportEnd Style: FlangedLength: 4Material: CopperNominal Size: 6Pressure Rating: 300Series: FIG 6084Pressure Class: 125/150
