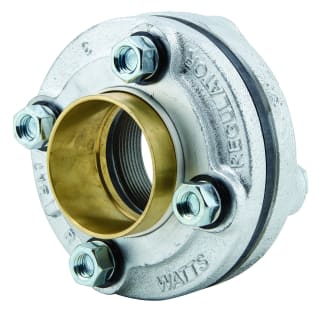

WATTS® 0821747 LF3100 Dielectric Flanged Pipe Fitting, 2-1/2 in, FNPT x C, 175 psi

1180265 MFG #: 0821747
$428.50 / ea
WATTS® 0821747 LF3100 Dielectric Flanged Pipe Fitting, 2-1/2 in, FNPT x C, 175 psi
  • Dimensions: 5-7/8 in OD Flange
  • End Style: FNPT x C
  • Length: 4-1/4
  • Nominal Size: 2-1/2
  • Pressure Rating: 175
  • Series: LF3100M3
  • Temperature Rating: 180
  • Domestic/Import: Domestic

WATTS® Dielectric Flanged Pipe Fitting, 2-1/2 in Nominal Size, FNPT x C, 4-1/4 in Length, 175 psi, 180 deg F, 5-7/8 in OD Flange

Series LF3100 Lead Free* Dielectric Flanged Pipe Fittings are used in commercial and residential applications to prevent accelerated corrosion and deterioration in the piping system due to galvanic and stray current. It is installed between pipes made from dissimilar metals, and features an iron pipe thread to copper solder joint connection. It consists of a flange fitting and a gasket. Series LF3100 is ideal in applications such as hot water storage tanks, water and air conditioners, processing tanks, steam, gas, and water piping. Maximum Pressure: 175psi.

QTY
Add to List
  • Features
  • Iron pipe thread to copper solder joint
  • Designed and manufactured to the highest quality standards
  • Flanges rated to at 175 psi (12.1 bar) and bolting conforms to ANSI B16.1 standard
  • Lead free brass union tailpiece
  • Gray iron adapter
  • Zinc plated steel bolts and nuts
  • Polysulfone insulator
  • Buna-N gasket
  • The wetted surface of this product contacted by consumable water contains less than 0.25% of lead by weight
  • Standard/Approvals: ANSI B16.1, ISO 9001-2008, Lead Free Approved
  • WARRANTY: Limited
