Spears® 851-100 1-Piece Flange, 10 in Nominal, PVC, Socket Connection, 150 lb, 16 in OD, Domestic

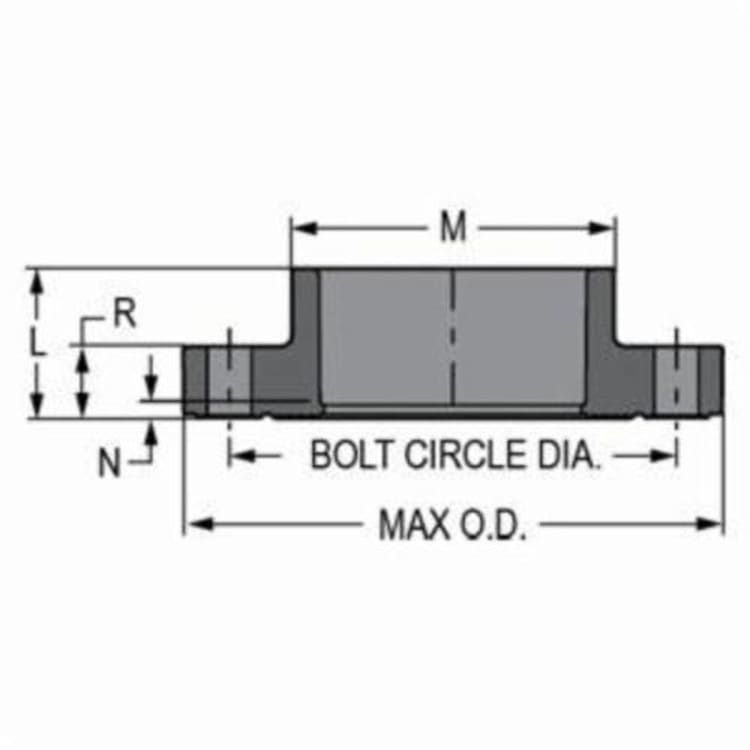

Spears® Flange, 1-Piece, 10 in Nominal, 16 in Outside Dia, 14-1/4 in Bolt Circle, Socket, 150 psi, 150 lb, SCH 40/STD/SCH 80/XH, 73 deg F, PVC, Gray, 5-3/8 in L, Domestic
Documents
- Standard/Approvals: ANSI B16.5|ASTM D1784|ASTM D1785|ASTM D2464|ASTM D2467|NSF 14/61
Spears® Flange, 1-Piece, 10 in Nominal, 16 in Outside Dia, 14-1/4 in Bolt Circle, Socket, 150 psi, 150 lb, SCH 40/STD/SCH 80/XH, 73 deg F, PVC, Gray, 5-3/8 in L, Domestic
All thermoplastic flanges shall be produced from PVC type I cell classification 12454 or CPVC type IV cell classification 23447. Bolt hole patterns shall conform to ANSI/ASME B-16.5 CL 150. All flanges shall be constructed from materials certified for potable water use by NSF international. All 1/2 in through 16 in injection molded flanges and all fabricated flanges with steel rings shall be pressure rated to 150 psi for water at 73 deg F, as manufactured by Spears manufacturing company.
- Brand: Spears®Bolt Circle Diameter: 14-1/4Color: GrayConnection Type: SocketDimensions: 5-3/8 in LDomestic/Import: DomesticMaterial: PVCNominal Size: 10Outside Diameter: 16Pressure Class: 150Pressure Rating: 150Schedule Rating: SCH 40/STD/SCH 80/XHTemperature Rating: 73Type: 1-Piece
Spears® 851-100 1-Piece Flange, 10 in Nominal, PVC, Socket Connection, 150 lb, 16 in OD, Domestic
Spears® Flange, 1-Piece, 10 in Nominal, 16 in Outside Dia, 14-1/4 in Bolt Circle, Socket, 150 psi, 150 lb, SCH 40/STD/SCH 80/XH, 73 deg F, PVC, Gray, 5-3/8 in L, Domestic
