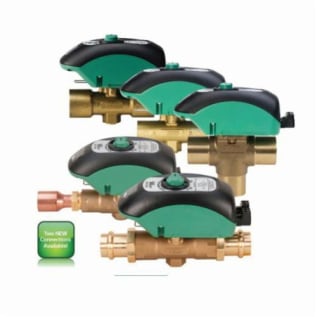

Taco® Z075T2-1 Zone Sentry® 2-Way Hydronic Zone Valve, 3/4 in, Thread, 300 psi, 10.3 Cv, 24 VAC
Taco® Hydronic Zone Valve, 2-Way, Series: Zone Sentry®, 3/4 in Nominal, Thread, 300 psi, 10.3 Cv, 24 VAC, 0.48 A Charging/0.06 A Power On, 20 to 220 deg F Water Temperature, Forged Brass
Documents
- Ball, stem, press ring brass
- Modified PTFE seat
- EPDM o-ring
- 125 psi shut-off pressure
- 135 deg F ambient temp
- 90 turns ball rotation speed
- 60 Hz frequency
- 11.4 W power consumption (charging)
- 1.44 W power consumption (power on)
- 0.5 A heat anticipator
- 1 A at 24 VAC
- High performance internally lubricated engineered polymer gears
Taco® Hydronic Zone Valve, 2-Way, Series: Zone Sentry®, 3/4 in Nominal, Thread, 300 psi, 10.3 Cv, 24 VAC, 0.48 A Charging/0.06 A Power On, 20 to 220 deg F Water Temperature, Forged Brass
Taco Zone Sentry® Zone Valves provide on-off, normally open or normally closed control in closed hydronic systems. (See Geo-Sentry for open system application.) The valves can be used in a wide variety of heating and condensing cooling applications, primarily designed for use with baseboard, fan coils, radiators, convectors, air handlers, heat pumps and radiant applications.
- Brand: Taco®Amperage Rating: 0.48 A Charging/0.06 A Power OnCoefficient of Volume: 10.3End Style: ThreadMaterial: Forged BrassNominal Size: 3/4Pressure Rating: 300Series: Zone Sentry®Type: 2-WayVoltage Rating: 24Water Temperature: 20 to 220
